Right-angle header for board-to-wire harnesses
The shrouded 4-wall design and locking ramp provide polarization and positive retention, reducing the risk of accidental disconnection under vibration.

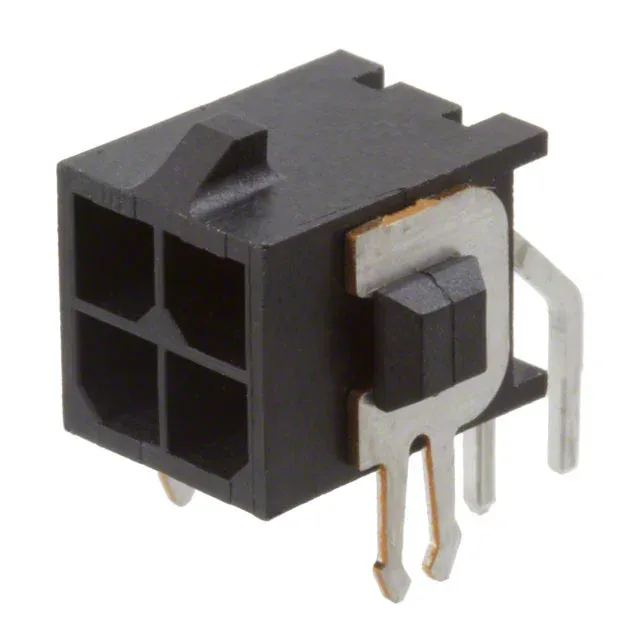

3-794679-4 TE Connectivity Micro MATE-N-LOK Header
MPN3-794679-4
Active
TE Connectivity AMP Connectors Micro MATE-N-LOK header, 3-794679-4, 4 positions, 2-row, 3.00 mm pitch, right-angle through-hole, shrouded, gold-plated male pins, board lock, UL94 V-0, -40°C to 105°C.
$2.2900Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMicro MATE-N-LOK
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Micro MATE-N-LOK |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.290\" (7.37mm) |
| Insulation material | Polyamide (PA), Nylon |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 4 |
| Row spacing - mating | 0.118\" (3.00mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is the pin configuration and pitch of 3-794679-4?
All positions are loaded with male square pins.
Is 3-794679-4 RoHS compliant?
Yes, it is ROHS3 compliant.
