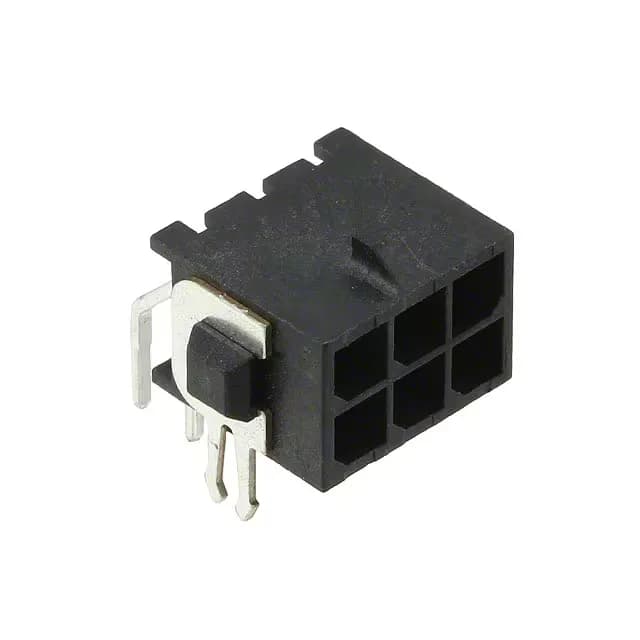

TE Connectivity AMP Connectors Micro MATE-N-LOK header, 3-794679-6, 6 circuits, 3.00 mm pitch, right-angle through-hole, shrouded 4-wall, gold mating finish, board lock, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Micro MATE-N-LOK |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C~105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.290\" (7.37mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 6 |
| Row spacing - mating | 0.118\" (3.00mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 3-794679-6: This is a 6-position, 2-row header from the Micro MATE-N-LOK series, pitched at 3.00 mm between contacts and rows.
The header mates with a Micro MATE-N-LOK receptacle housing that accepts crimp terminals for 20-24 AWG wire. Termination is solder to the board — the through-hole pins are designed for wave or hand-solder assembly.
The mating half is a Micro MATE-N-LOK receptacle housing (e.g., 794617 series) that accepts crimp terminals. The locking ramp on this header engages the receptacle latch; the 4-wall shroud guides alignment.
The header itself is rated for the full series current when mated with the correct terminal and wire.
