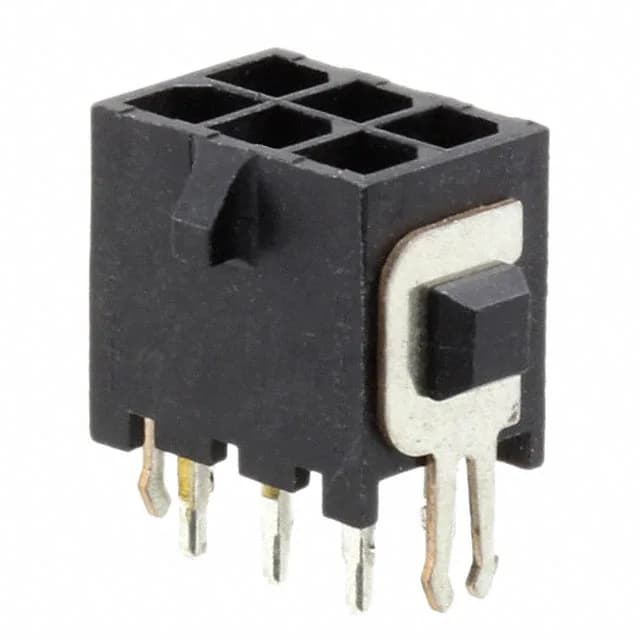

TE Connectivity AMP Micro MATE-N-LOK header, 3-794680-6, 6 positions, 2 rows, 3.00mm pitch, shrouded 4-wall, through-hole solder, locking ramp, board lock, tin plating, UL94 V-0, -40°C to 105°C.
| Parameter | Value |
|---|---|
| Series | Micro MATE-N-LOK |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.364\" (9.25mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 6 |
| Row spacing - mating | 0.118\" (3.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
The 3.00mm pitch and 3.00mm row spacing match the Micro MATE-N-LOK receptacle family, so the board footprint is a simple 2×3 grid.
The through-hole solder tails are 0.125" (3.18mm) long, suitable for standard 1.6mm PCBs.
Yes, it is a shrouded 4-wall header, which protects the male pins and guides the mating receptacle.
Yes, it includes board locks for through-hole solder retention and vibration resistance.
It mates with Micro MATE-N-LOK receptacle housings (e.g., 794617 series) using the matching crimp terminals. Confirm the circuit count and keying for your application.
