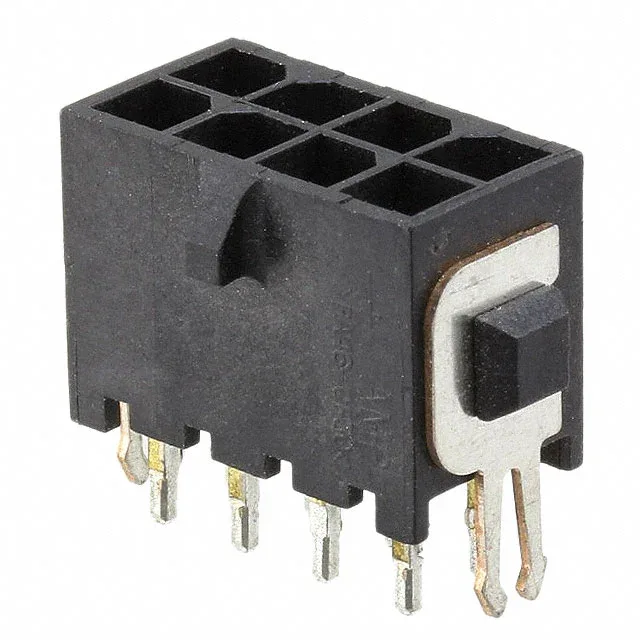

TE Connectivity AMP Connectors Micro MATE-N-LOK header, 3-794680-8, 8 circuits, 3.00 mm pitch, shrouded - 4 wall, locking ramp, board lock, through-hole solder, tin plating, UL94 V-0, -40°C to 105°C.
| Parameter | Value |
|---|---|
| Series | Micro MATE-N-LOK |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.364\" (9.25mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 8 |
| Row spacing - mating | 0.118\" (3.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
The 3-794680-8 is an 8-position, dual-row header from TE's Micro MATE-N-LOK series, on a 3.00 mm pitch with 3.00 mm row spacing. It mates with the standard Micro MATE-N-LOK receptacle housing and crimp terminals — it's three parts, not one: header, housing, and terminal all need to match. A board lock on each end anchors the part during wave solder and resists cable strain in service.
Voltage rating is 250 V.
The mating pitch is 0.118" (3.00 mm) with the same row spacing. This is the standard Micro MATE-N-LOK pitch.
Yes, the header is fully shrouded with four walls, and it uses a locking ramp for secure mating. A board lock is also present.
Yes, this header is designed to mate with Micro MATE-N-LOK receptacle housings that accept the series' crimp terminals. Confirm the housing part number and wire gauge for current rating.
