Board-to-Cable Header for Vibration-Prone Wiring
It carries 8 positions in 2 rows on a 3.00mm pitch, with a locking ramp that secures the mating cable housing against vibration.

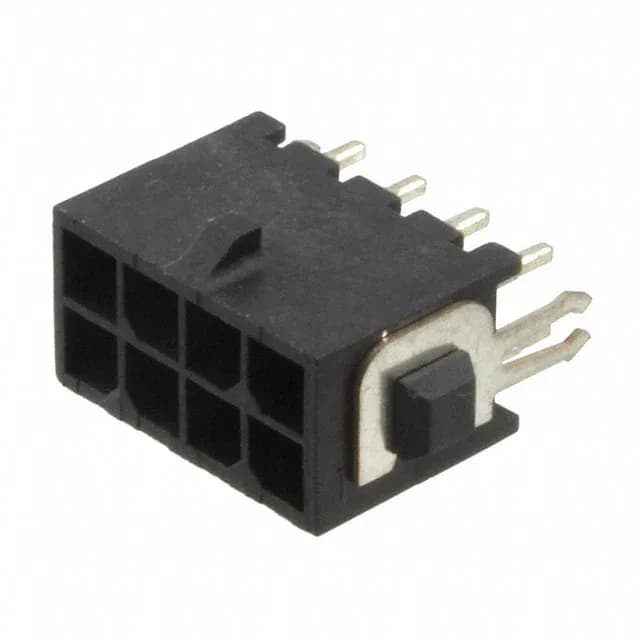

3-794681-8 TE Connectivity Micro MATE-N-LOK Header, 8 Pos
MPN3-794681-8
Active
TE Connectivity AMP Connectors Micro MATE-N-LOK header, 3-794681-8, 8 positions, 2 rows, 3.00mm pitch, through-hole, shrouded, locking ramp, gold mating contacts, board lock, UL94 V-0.
$2.4100Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMicro MATE-N-LOK
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Micro MATE-N-LOK |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.364\" (9.25mm) |
| Insulation material | Polyamide (PA), Nylon |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 8 |
| Row spacing - mating | 0.118\" (3.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Product details
Frequently asked questions
What is the pitch and number of positions for 3-794681-8?
It is an 8-position header on a 3.00mm pitch, arranged in 2 rows with 3.00mm row spacing.
Is 3-794681-8 compatible with Micro MATE-N-LOK crimp housings?
Yes, this header mates with the matching Micro MATE-N-LOK receptacle housings that accept the series' crimp terminals. The locking ramp engages the housing latch for a vibration-resistant connection.
Where can I buy 3-794681-8?
This active Micro MATE-N-LOK header is sourced per RFQ; availability and pricing are confirmed at quote time.
