TE Connectivity AMP Connectors 3-794682-2 — Pin Headers

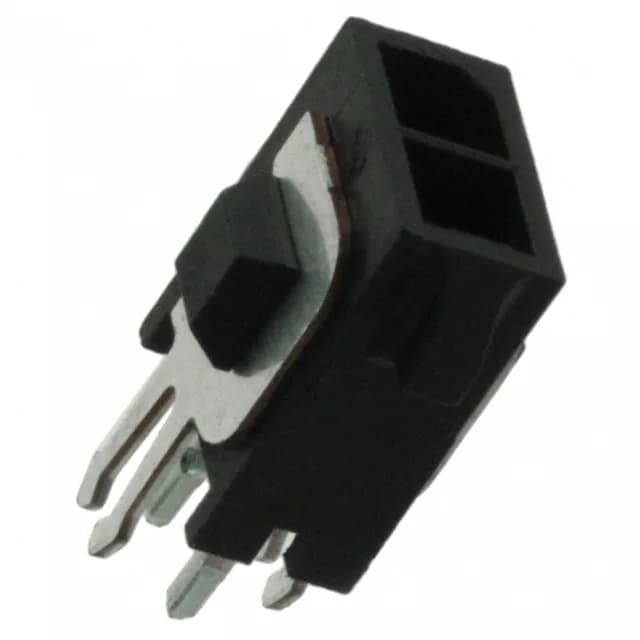

3-794682-2 TE Micro MATE-N-LOK Header, 2-Pos, Gold, Shrouded

MPN3-794682-2
Active

TE Connectivity AMP Micro MATE-N-LOK header, 3-794682-2, 2-position dual-row, through-hole, shrouded 4-wall, gold mating finish 30.0µin, locking ramp, board lock, UL94 V-0, -40°C to 105°C.

$1.2600Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesMicro MATE-N-LOK
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

3-794682-2 key specifications
ParameterValue
SeriesMicro MATE-N-LOK
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating250V
Current ratingVaries by Wire Gauge
Operating temperature-40°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.364\" (9.25mm)
Insulation materialPolyamide (PA), Nylon

All specifications

3-794682-2 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray
FeaturesBoard Lock
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose
Contact shapeSquare
Rows2
Positions2
Row spacing - mating0.118\" (3.00mm)
Contact finish - postTin
Contact length - post0.125\" (3.18mm)
Contact finish - matingGold
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Two circuits, gold-plated, locked in place

The 3-794682-2 is a 2-position, dual-row header from the Micro MATE-N-LOK series — board-to-cable/wire style, through-hole solder termination.

The closest functional peer is the 1-1871673-2, a 4-position right-angle header from the same series but with tin-plated contacts (31.5µin) instead of gold — if your application needs more positions or a right-angle board exit, that part fits the same receptacle family, but the tin plating drops the mating cycle life significantly.

Frequently asked questions

What receptacle mates with 3-794682-2?

It mates with Micro MATE-N-LOK receptacle housings that accept the matching crimp terminals — the 2-position dual-row layout uses the same 0.118" (3.00mm) row spacing as the rest of the series.

What is the difference between 3-794682-2 and the tin-plated peer 1-1871673-2?

Gold gives a higher mating cycle rating — tin is fine for one-time or infrequent mate, but gold handles repeated field-service cycling without fretting. The 1-1871673-2 also has 4 positions (vs 2) and a right-angle orientation.
