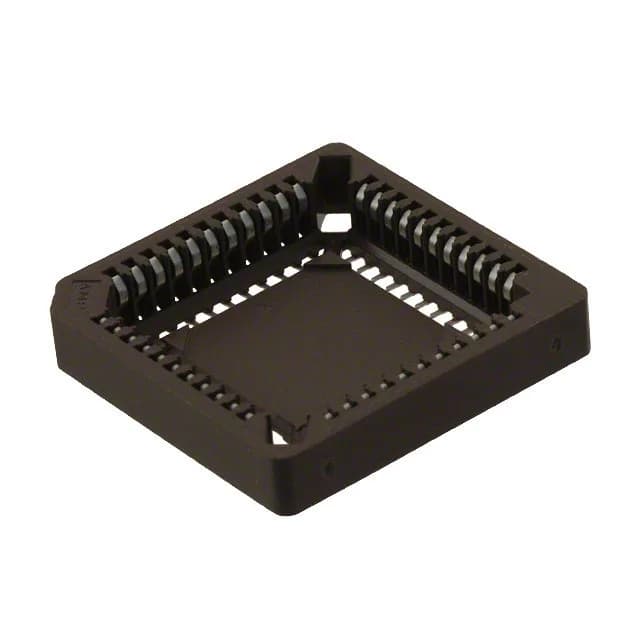

TE Connectivity AMP Connectors PLCC socket, order code 3-822516-1, 44 positions (4 x 11), 0.050" (1.27mm) pitch, tin-plated mating contacts, surface-mount, solder termination, closed frame, UL94 V-0.
| Parameter | Value |
|---|---|
| Type | PLCC |
| Mounting | Surface Mount |
| Housing material | Thermoplastic |
| Contact material - post | Phosphor Bronze |
| Contact material - mating | Phosphor Bronze |
| Material flammability rating | UL94 V-0 |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Closed Frame |
| Termination | Solder |
| Pitch - post | 0.050\" (1.27mm) |
| Pitch | 0.050\" (1.27mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
| Number of positions or pins | 44 (4 x 11) |
The 3-822516-1 is a 44-position (4 x 11) PLCC socket from TE Connectivity AMP Connectors, built on the 822516 base product number.
The 3-822516-1 is listed as Obsolete by the manufacturer. No stock-holding claim is made.
TE Connectivity AMP Connectors is the brand.
