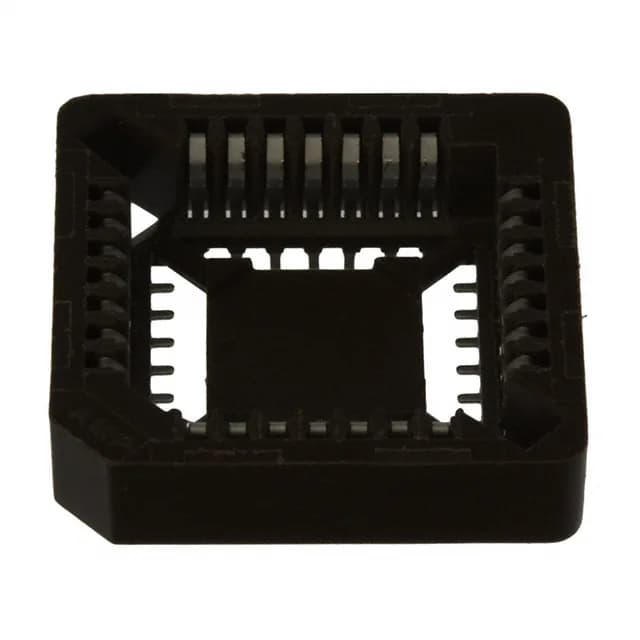

TE Connectivity AMP Connectors PLCC socket, order code 3-822516-2, 28 positions (4 x 7 grid), 0.050" (1.27mm) pitch, tin-plated mating contacts, surface mount, solder termination, closed frame, UL94 V-0.
TE 3-822516-2 PLCC Socket, 28 Pos, 1.27mm, Obsolete
MPN3-822516-2
Obsolete
TE Connectivity AMP Connectors PLCC socket, order code 3-822516-2, 28 positions (4 x 7 grid), 0.050" (1.27mm) pitch, tin-plated mating contacts, surface mount, solder termination, closed frame, UL94 V-0.
$2.3300Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | PLCC |
| Mounting | Surface Mount |
| Housing material | Thermoplastic |
| Contact material - post | Phosphor Bronze |
| Contact material - mating | Phosphor Bronze |
| Material flammability rating | UL94 V-0 |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Closed Frame |
| Termination | Solder |
| Pitch - post | 0.050\" (1.27mm) |
| Pitch | 0.050\" (1.27mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
| Number of positions or pins | 28 (4 x 7) |
Product details
Frequently asked questions
How can I source the 3-822516-2?
The 3-822516-2 is available through independent surplus channels.
What is the pin grid arrangement of the 3-822516-2?
The 3-822516-2 has 28 positions arranged in a 4 x 7 grid at 0.050" (1.27mm) pitch.
