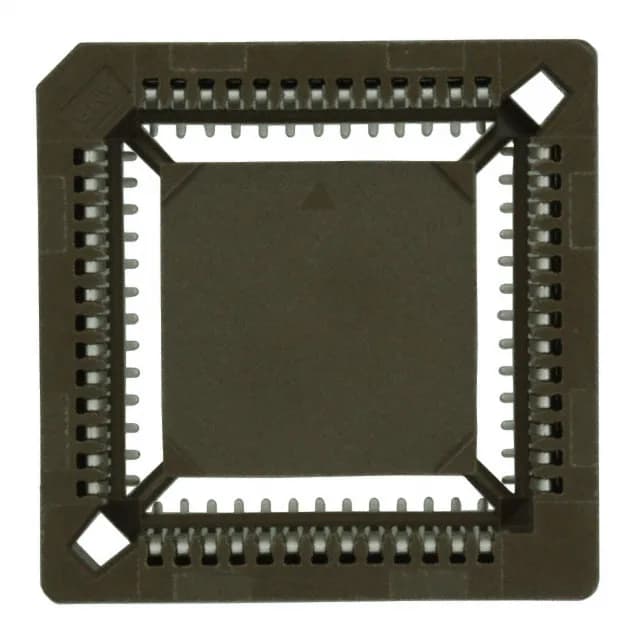

3-822516-4 - TE Connectivity AMP Connectors
MPN3-822516-4
Obsolete
$1.6285Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | PLCC |
| Mounting | Surface Mount |
| Housing material | Thermoplastic |
| Contact material - post | Phosphor Bronze |
| Contact material - mating | Phosphor Bronze |
| Material flammability rating | UL94 V-0 |
| Package | Tape & Reel (TR) |
| Features | Closed Frame |
| Termination | Solder |
| Pitch - post | 0.050\" (1.27mm) |
| Pitch | 0.050\" (1.27mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
| Number of positions or pins | 52 (4 x 13) |
