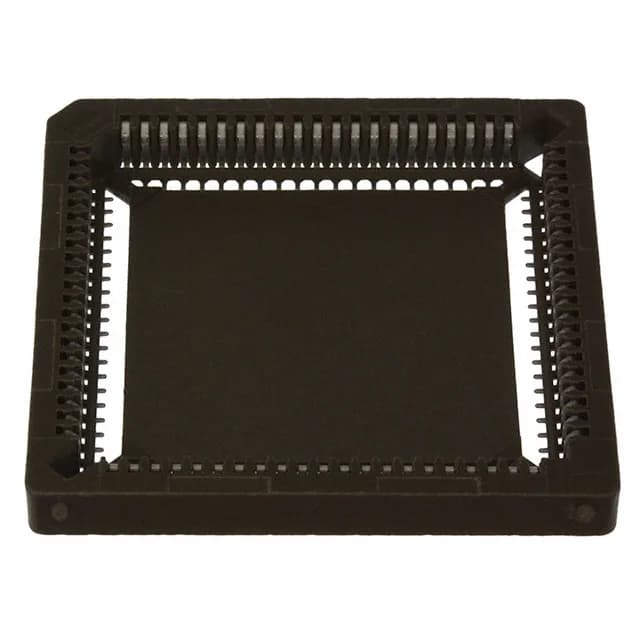

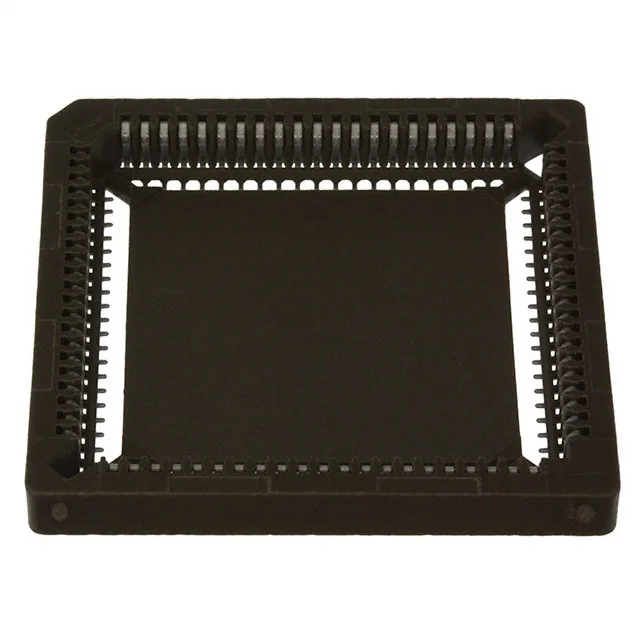

TE Connectivity AMP Connectors PLCC socket, order code 3-822516-6, 84 positions (4 x 21 grid), 0.050" (1.27mm) pitch, tin-plated mating and post contacts, surface-mount solder termination, closed-frame housing.
3-822516-6 TE Connectivity PLCC Socket, 84 Pos, 1.27mm
MPN3-822516-6
Active
TE Connectivity AMP Connectors PLCC socket, order code 3-822516-6, 84 positions (4 x 21 grid), 0.050" (1.27mm) pitch, tin-plated mating and post contacts, surface-mount solder termination, closed-frame housing.
$13.0200Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Type | PLCC |
| Mounting | Surface Mount |
| Housing material | Thermoplastic |
| Contact material - post | Phosphor Bronze |
| Contact material - mating | Phosphor Bronze |
| Material flammability rating | UL94 V-0 |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Closed Frame |
| Termination | Solder |
| Pitch - post | 0.050\" (1.27mm) |
| Pitch | 0.050\" (1.27mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
| Number of positions or pins | 84 (4 x 21) |
Product details
Frequently asked questions
How do I get current pricing and availability for 3-822516-6?
Submit an RFQ for the 3-822516-6 against your BOM quantity; availability is confirmed per quote.
What is 3-822516-6's listed type (PLCC) on this Pin Headers, Sockets & Housings line?
The 3-822516-6 is classified as Type PLCC.
