PLCC Socket, 32 Position, Obsolete
The 3-822516-7: The closed-frame thermoplastic housing carries tin-plated phosphor bronze contacts and is rated UL94 V-0.
The 3-822516-7 is classified as Obsolete by TE Connectivity AMP Connectors.

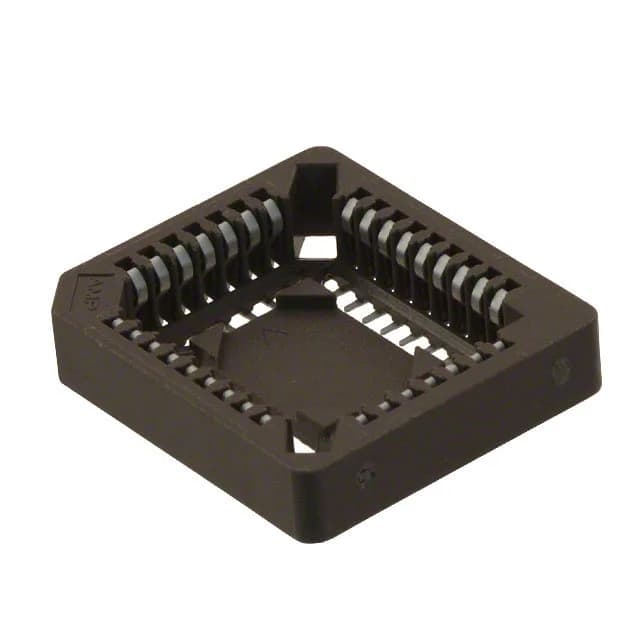

3-822516-7 TE Connectivity PLCC Socket, 32 Position, 1.27mm
MPN3-822516-7
Obsolete
TE Connectivity AMP Connectors PLCC socket, order code 3-822516-7, 32 positions (2 x 7, 2 x 9), 0.050" (1.27mm) pitch, tin-plated mating contacts, surface-mount solder termination, closed-frame housing.
$2.3900Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | PLCC |
| Mounting | Surface Mount |
| Housing material | Thermoplastic |
| Contact material - post | Phosphor Bronze |
| Contact material - mating | Phosphor Bronze |
| Material flammability rating | UL94 V-0 |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Closed Frame |
| Termination | Solder |
| Pitch - post | 0.050\" (1.27mm) |
| Pitch | 0.050\" (1.27mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
| Number of positions or pins | 32 (2 x 7, 2 x 9) |
Product details
Frequently asked questions
What is the closest pin-compatible alternative to the 3-822516-7?
A board spin may be required for a functional replacement.
