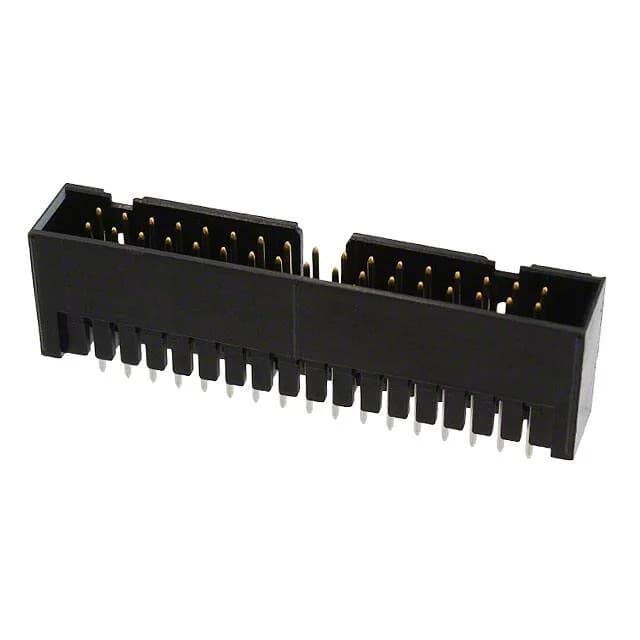

TE Connectivity AMP-Latch header, order code 3-827745-4, 34 positions, dual row, 0.100" (2.54mm) pitch, gold or gold-palladium mating contacts, 31.5µin (0.80µm) thickness, through-hole, solder termination, shrouded - 4 wall, keying slot, mounting flange, bulk.
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Insulation color | Black |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Keying Slot, Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 34 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact finish thickness - mating | 31.5µin (0.80µm) |
The 3-827745-4 is the 34-position member of the TE AMP-Latch shrouded header line, designed for board-to-cable/wire connections.
The 3-827745-4 is listed as obsolete by TE Connectivity AMP Connectors.
TE Connectivity AMP Connectors is the manufacturer. No stock-holding claim is made.
A board spin may be required for a functional replacement.
