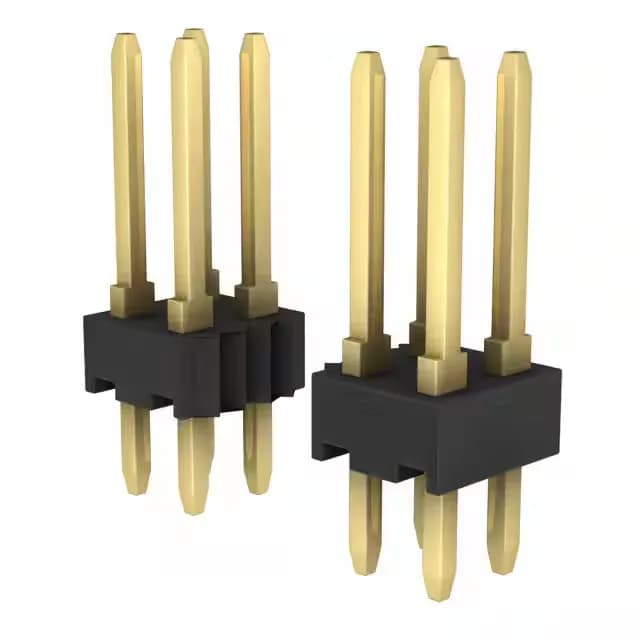

TE Connectivity AMPMODU Mod II header, order code 3-87346-0, 60 positions, dual row, 0.100" (2.54 mm) pitch, gold mating contacts, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.090\" (2.29mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Parameter | Value |
|---|---|
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 60 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact length - post | 0.220\" (5.58mm) |
| Overall contact length | 0.628\" (15.95mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 3-87346-0: Mating contacts are gold-plated (15.0µin) on phosphor bronze; the through-hole solder tails measure 0.220" (5.58 mm) post length.
TE Connectivity lists the 3-87346-0 as Obsolete.
