TE Connectivity AMP Connectors 3-87631-0 — Connector Housings

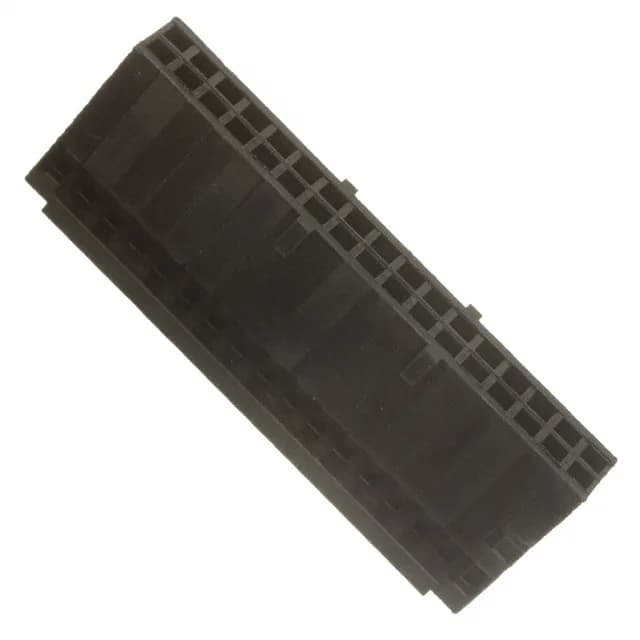

TE AMPMODU Mod IV 3-87631-0, 34-Pos Receptacle Housing

MPN3-87631-0
Active

TE Connectivity AMPMODU Mod IV receptacle housing, 3-87631-0, 34 positions, 2 rows, 0.100" (2.54mm) pitch, 0.100" (2.54mm) row spacing, free-hanging, detent lock, crimp termination, black PA nylon housing, contacts not included.

$3.6300Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesAMPMODU Mod IV
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3-87631-0 specifications
ParameterValue
SeriesAMPMODU Mod IV
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeDetent Lock
Operating temperature-65°C ~ 105°C
ColorBlack
Insulation materialPolyamide (PA), Nylon, Glass Filled
NoteContacts Not Included
Pitch0.100\" (2.54mm)
PackageBulk
Row spacing0.100\" (2.54mm)
Rows2
Contact terminationCrimp
Positions34

Product details

34-Position Dual-Row Housing for Harness Builds

The TE Connectivity AMPMODU Mod IV 3-87631-0 is a 34-position, dual-row receptacle housing built for wire-to-board or wire-to-wire harnesses. You order the female crimp terminals separately, which means you can re-pin it on site with a basic crimp tool if a terminal backs out or frets.

If 34 positions aren't what your BOM calls for, the same AMPMODU Mod IV dual-row receptacle family includes a 36-position (3-87631-1) and a 40-position (3-87631-5) version. The 3-87456-0 is another 34-position housing but with a different base number; check the keying or panel-mount features if you're swapping between them.

Frequently asked questions

Does 3-87631-0 include contacts?

No — the 3-87631-0 is a housing only. Contacts are not included and must be ordered separately as AMPMODU Mod IV female crimp terminals.
