TE Connectivity AMP Connectors 3-87631-5 — Connector Housings

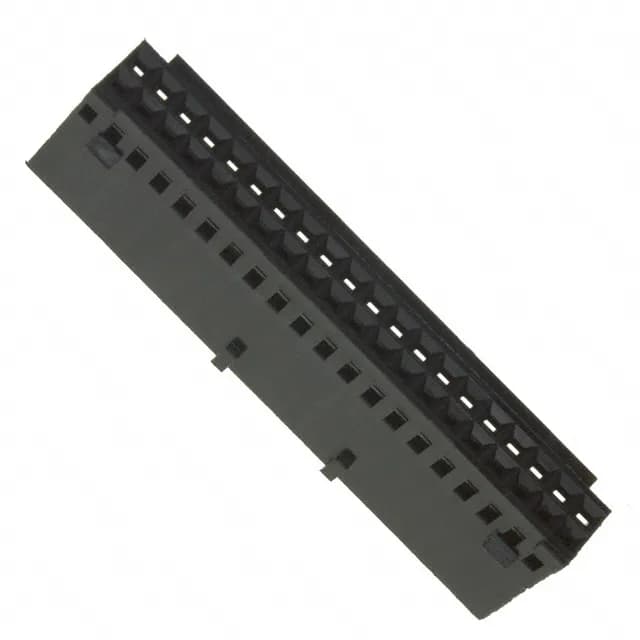

TE AMPMODU Mod IV 3-87631-5, 40 Pos Receptacle Housing

MPN3-87631-5
Active

TE Connectivity AMPMODU Mod IV receptacle housing, 3-87631-5, 40 positions, 2 rows, 0.100" (2.54mm) pitch, free-hanging, crimp termination, detent lock, black nylon, -65°C to 105°C.

$2.9800Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesAMPMODU Mod IV
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3-87631-5 specifications
ParameterValue
SeriesAMPMODU Mod IV
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeDetent Lock
Operating temperature-65°C ~ 105°C
ColorBlack
Insulation materialPolyamide (PA), Nylon, Glass Filled
NoteContacts Not Included
Pitch0.100\" (2.54mm)
PackageBulk
Row spacing0.100\" (2.54mm)
Rows2
Contact terminationCrimp
Positions40

Product details

40-Position Housing for High-Density Wire Harnesses

Pitch and Row Spacing — Board Layout Fit

Both the pitch between adjacent positions within a row and the row-to-row spacing are 0.100" (2.54mm). For a 2-row, 40-position layout, the overall width across the housing is approximately 2.00" (20 positions x 0.100") and the depth across both rows is 0.100" plus the housing wall thickness. When mating with a PCB header, the board footprint will need through-hole or SMT pads on that same 0.100" grid. The dual-row arrangement doubles the density compared to a single-row 40-position housing of the same pitch.

Frequently asked questions

Does 3-87631-5 come with contacts?

No, the 3-87631-5 is a receptacle housing only — the listing explicitly notes "Contacts Not Included". You must order the matching AMPMODU Mod IV female crimp socket terminals separately, sized for your wire gauge.

What is the pitch and row spacing of 3-87631-5?

Both the pitch between adjacent positions and the row-to-row spacing are 0.100" (2.54mm).
