TE Connectivity AMP Connectors 3-87977-8 — Connector Housings

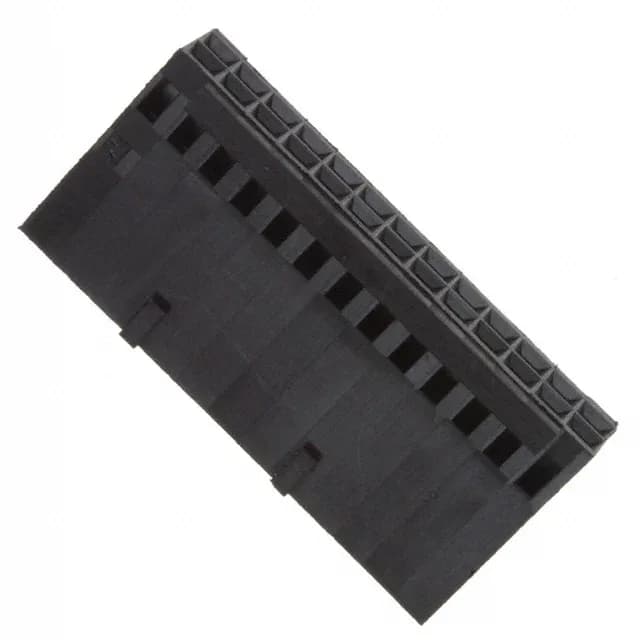

TE AMPMODU Mod IV 3-87977-8, 26-Position Receptacle Housing

MPN3-87977-8
Active

TE Connectivity AMPMODU Mod IV receptacle housing, 3-87977-8, 26 positions, 2 rows, 0.100" (2.54mm) pitch, 0.100" (2.54mm) row spacing, free-hanging (in-line), crimp termination, black polyamide housing, contacts not included.

$2.9400Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesAMPMODU Mod IV
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3-87977-8 specifications
ParameterValue
SeriesAMPMODU Mod IV
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Operating temperature-65°C ~ 105°C
ColorBlack
Insulation materialPolyamide (PA), Nylon, Glass Filled
NoteContacts Not Included
Pitch0.100\" (2.54mm)
PackageBulk
Row spacing0.100\" (2.54mm)
Rows2
Contact terminationCrimp
Positions26

Product details

The black colour and standard Mod IV latching geometry mean it mates with the corresponding 0.100" pitch AMPMODU Mod IV headers — both shrouded and unshrouded — without modification to the board layout.

Procurement — Contacts Not Included, Active Production

Mates with any 0.100" (2.54mm) pitch AMPMODU Mod IV header — dual-row, 26 positions. No secondary retention features on this housing; the primary lance in the contact provides the hold. The 2.54mm row spacing matches the standard Mod IV header footprint, so the mated pair sits at the same board-edge height as any other Mod IV connector.

Frequently asked questions

What is the pitch and row spacing of 3-87977-8?

Both the pitch between contacts and the row spacing are 0.100" (2.54mm). This is the standard AMPMODU Mod IV grid, making the housing footprint-compatible with all Mod IV headers of the same position count.

What is the 3-87977-8 used for?

It is a dual-row, 26-position receptacle housing for free-hanging wire-to-board or wire-to-wire interconnects using the AMPMODU Mod IV system. Typical applications include internal harness wiring in industrial controls, automotive electronics, and telecom equipment where the -65°C to 105°C temperature range is required.
