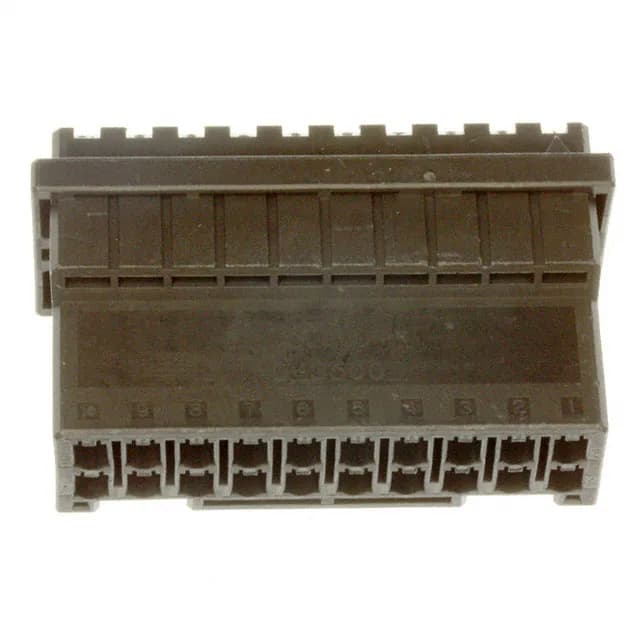

TE Connectivity Dynamic D-3500 series, plug housing, 3-917242-8, 20 positions, 2 rows, 0.200" (5.08mm) pitch, crimp termination, free hanging, black thermoplastic, -55°C to 105°C.
| Parameter | Value |
|---|---|
| Series | Dynamic D-3500 |
| Type | Tab |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Note | Contacts Not Included |
| Pitch | 0.200\" (5.08mm) |
| Package | Bulk |
| Row spacing | 0.200\" (5.08mm) |
| Rows | 2 |
| Contact termination | Crimp |
| Positions | 20 |
This plug housing mates with a Dynamic D-3500 series header of the same pitch and position count — a 20-position, 2-row, 5.08 mm pitch board-mount header. The crimp terminals are the Dynamic D-3500 tab contacts, sized for the wire gauge the application requires; the housing itself does not carry a current rating (that depends on the terminal and wire combination selected).
The 3-917242-8 accepts Dynamic D-3000/D-3500 series crimp tab contacts. Contacts are not included with the housing — order the appropriate terminal for your wire gauge separately.
Yes, the 3-917242-8 is RoHS Compliant per the manufacturer's listing.
