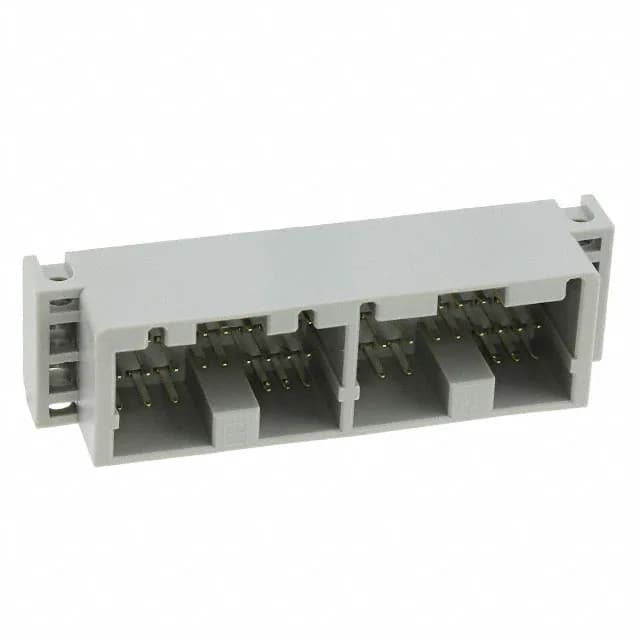

48-Position Right-Angle Header for Dense Wire-to-Board Harnesses
Its right-angle through-hole termination and shrouded 4-wall housing provide a robust connection point for high-density harnesses. The locking ramp fastening system secures the mating connector under vibration, making this header suitable for automotive and general-purpose industrial environments.
Mounting and Termination Details for Board Layout
The 0.783" (19.89 mm) insulation height provides clearance for mating receptacle housings. Through-hole solder termination offers reliable mechanical retention and is compatible with wave-solder assembly. The mounting flange adds extra board anchoring against cable strain. The contact length of 0.276" (7.00 mm) ensures full engagement with the mating terminal, maintaining low contact resistance across the tin-plated interface.
No direct replacement or cross-reference is listed by the manufacturer; the 1-2232960-3 is a 3-position single-row variant from a different series and is not a functional substitute.
