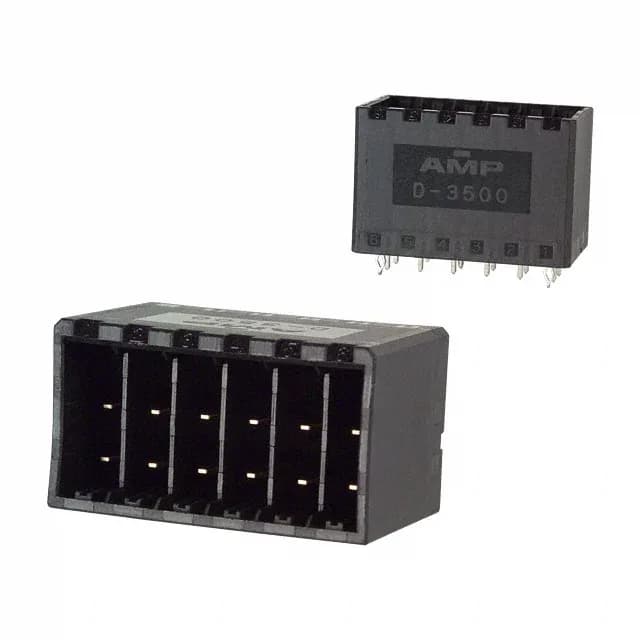

TE Connectivity AMP Connectors Dynamic D-3500 series header, 316516-2, 12 positions, 5.08 mm pitch, through-hole, shrouded 4-wall, gold mating finish, 600 V, UL94 V-0, active production.
| Parameter | Value |
|---|---|
| Series | Dynamic D-3500 |
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 600V |
| Operating temperature | -55°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.850\" (21.59mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 2 |
| Pitch | 0.200\" (5.08mm) |
| Positions | 12 |
| Row spacing - mating | 0.200\" (5.08mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 316516-2: The through-hole termination with a 0.150" post length gives a solid mechanical anchor on the PCB.
This header is designed for board-to-board or cable applications, typical in general-purpose and industrial equipment where the 5.08 mm pitch allows for higher voltage and current than finer-pitch connectors.
The 316516-2 mates with a Dynamic D-3500 series receptacle housing that accepts the corresponding crimp terminals.
Yes, the 316516-2 is RoHS compliant per TE Connectivity's current compliance status.
