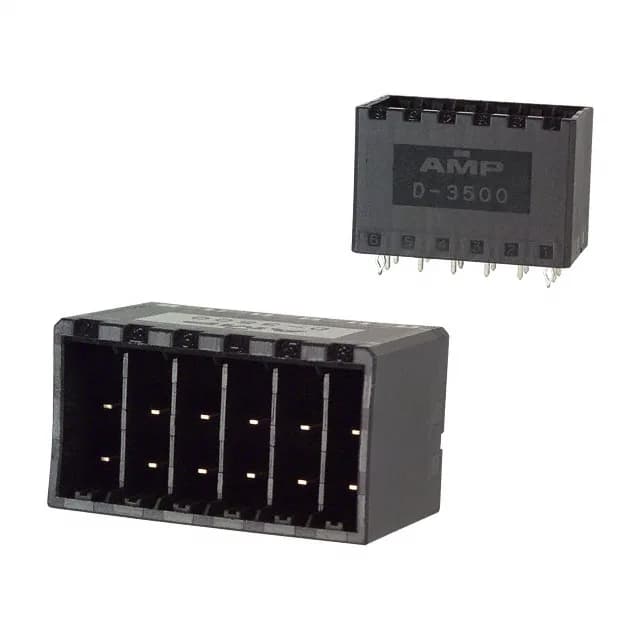

TE Connectivity AMP Connectors Dynamic D-3500 header, order code 316516-3, 12 positions, dual row, 5.08 mm pitch, 600 V, gold-plated mating contacts, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Series | Dynamic D-3500 |
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 600V |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.850\" (21.59mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 2 |
| Pitch | 0.200\" (5.08mm) |
| Positions | 12 |
| Row spacing - mating | 0.200\" (5.08mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 316516-3: Gold-plated mating contacts rated 600 V suit power distribution and industrial control applications. The four-wall shroud and detent lock protect the mating interface against vibration and mis-mate.
The 0.850 in (21.59 mm) insulation height and full shrouding guide the mating receptacle into alignment before the contacts engage.
RoHS and REACH compliance documentation is available from TE Connectivity AMP Connectors.
