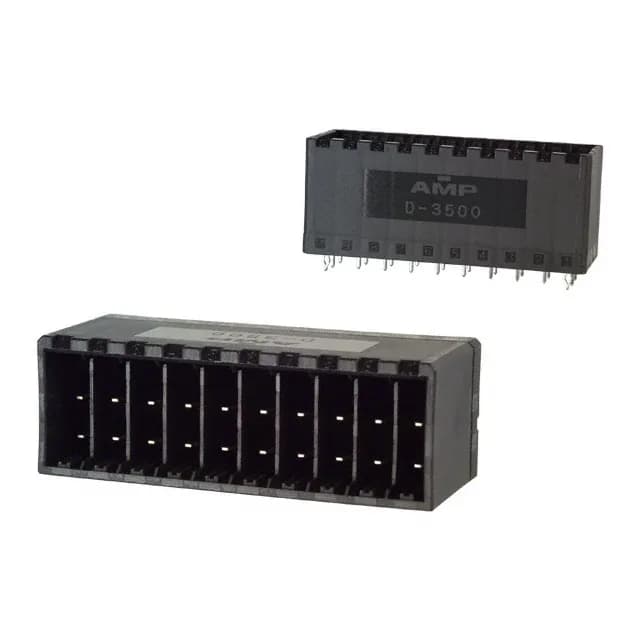

TE Connectivity AMP Connectors Dynamic D-3500 series, 316517-5, shrouded header, 20 circuits, 5.08 mm pitch, dual-row, through-hole, tin-plated contacts, board lock, UL94 V-0, -55°C to 105°C.
| Parameter | Value |
|---|---|
| Series | Dynamic D-3500 |
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 600V |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.850\" (21.59mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 2 |
| Pitch | 0.200\" (5.08mm) |
| Positions | 20 |
| Row spacing - mating | 0.200\" (5.08mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - mating | 78.7µin (2.00µm) |
The 316517-5: This is a 20-position, dual-row header on 5.08 mm pitch — the same pitch as the mating Dynamic D-3500 receptacle.
Mating contacts are finished with 78.7 µin (2.00 µm) of tin over copper alloy — a standard thickness for tin-plated connectors in the Dynamic D-3500 series.
316517-5 is a 20-position, dual-row header on 0.200" (5.08 mm) pitch. The row spacing is also 5.08 mm.
Yes, 316517-5 is ROHS3 compliant.
