8 AWG knife terminal — Diamond Grip series

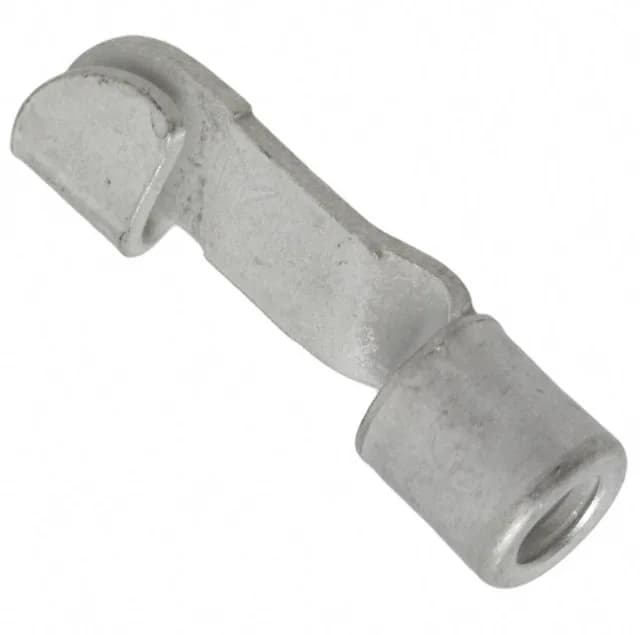

The 32161 is the 8 AWG member of TE Connectivity's Diamond Grip knife terminal line, a non-insulated copper terminal with electro-tin finish. Overall length is 1.225" (31.12mm); the mating stack height measures 0.390" (9.91mm).
Position within the Diamond Grip range
The 8 AWG 32161 sits alongside lighter-gauge Diamond Grip siblings: the 31763 handles 14-16 AWG with a 0.203" stack height and 0.745" length; the 31943 also covers 14-16 AWG with a tin finish and accepts insulation diameters of 0.105" to 0.150"; the 31770 serves 16-22 AWG with a 0.203" stack height and 0.810" length.
