TE Connectivity AMP Connectors 322366
MPN322366
Active

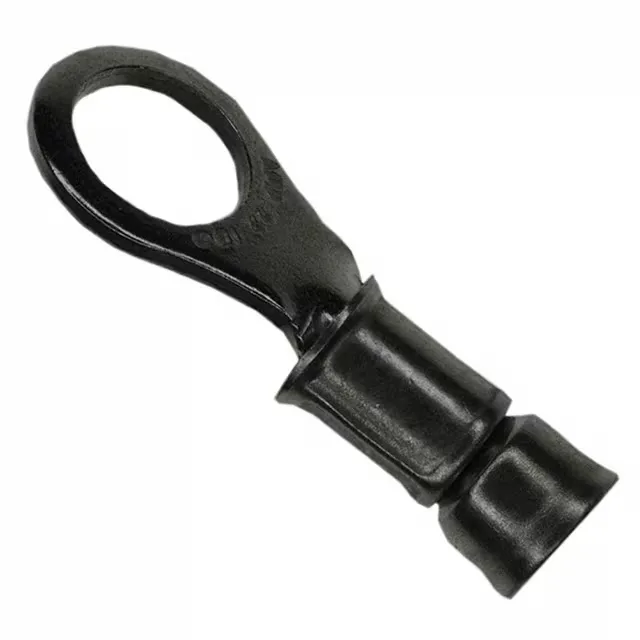

CONN RING CIRC 16-22AWG #10
$1.84Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesDiamond Grip, Strato-Therm
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Diamond Grip, Strato-Therm |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 16-22 AWG |
| Contact material | Copper |
| Width - outer edges | 0.281\" (7.14mm) |
| Package | Bulk |
| Features | Serrated Termination |
| Thickness | 0.031\" (0.79mm) |
| Insulation | Non-Insulated |
| Termination | Crimp |
| Stud (Tab size) | 10 Stud |
| Contact finish | Nickel |
| Length - overall | 0.749\" (19.02mm) |
| Insulation diameter | 0.105\" ~ 0.140\" (2.67mm ~ 3.56mm) |
