TE Connectivity AMP Connectors 325302
MPN325302
Active

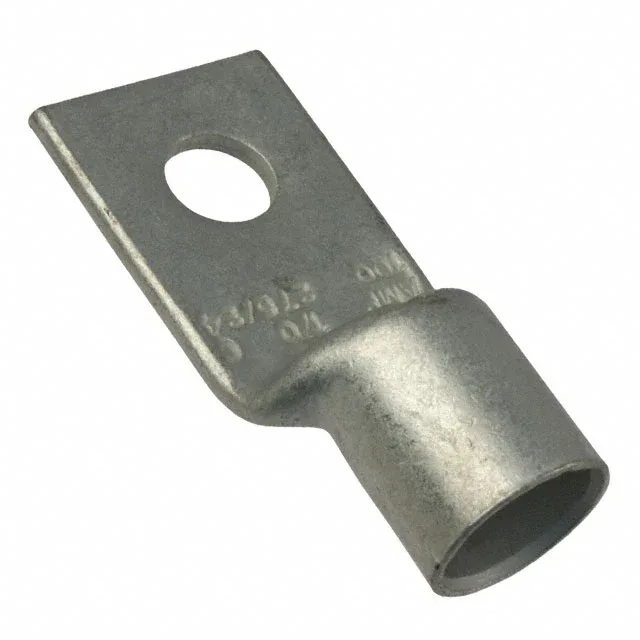

CONN TERM RECT 1/0 AWG #5/16
$7.25Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAmpower
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Ampower |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 1/0 AWG |
| Terminal style | Single Stud Hole |
| Contact material | Copper |
| Width - outer edges | 0.870\" (22.10mm) |
| Package | Bulk |
| Insulation | Non-Insulated |
| Termination | Crimp, Barrel |
| Stud (Tab size) | 5/16 Stud |
| Tab thickness | 0.100\" (2.54mm) |
| Contact finish | Tin |
| Length - overall | 1.970\" (50.04mm) |
| Diameter - ring ID | 0.328\" (8.33mm) |
| Diameter - barrel ID | 0.458\" (11.63mm) |
| Diameter - barrel OD | 0.581\" (14.76mm) |
