TE Connectivity AMP Connectors 326801 — Wire-to-Wire Connectors

TE 326801 Ampower Rectangular Terminal 2/0 AWG #3/8 Stud

MPN326801
Active

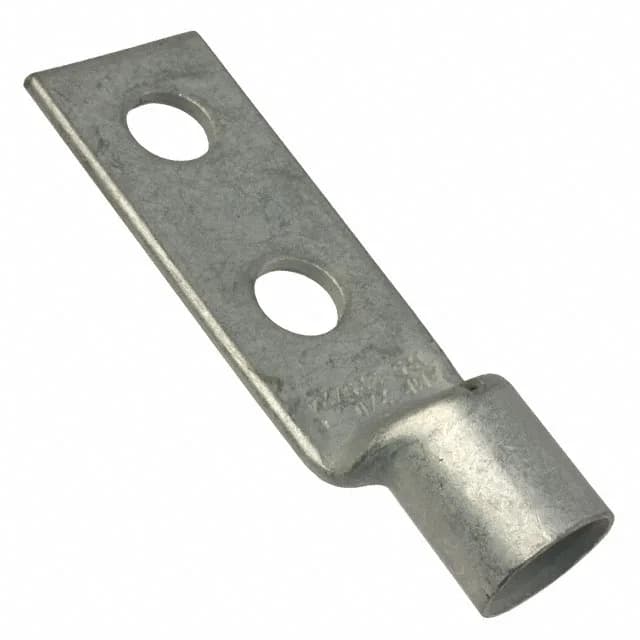

TE Connectivity AMP Connectors Ampower rectangular terminal, order code 326801, 2/0 AWG, #3/8 stud, tin-plated copper, non-insulated, free-hanging in-line, crimp barrel termination, bulk.

$10.5800Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 326801 datasheet (PDF)
RoHSNot applicable
SeriesAmpower
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

326801 specifications
ParameterValue
SeriesAmpower
MountingFree Hanging (In-Line)
Terminal typeStandard
Wire gauge2/0 AWG
Terminal styleTwo Stud Holes
Contact materialCopper
Width - outer edges0.970\" (24.64mm)
PackageBulk
InsulationNon-Insulated
TerminationCrimp, Barrel
Stud (Tab size)3/8 Stud
Tab thickness0.110\" (2.79mm)
Contact finishTin
Length - overall3.120\" (79.25mm)
Diameter - ring ID0.390\" (9.91mm)
Diameter - barrel ID0.513\" (13.03mm)
Diameter - barrel OD0.646\" (16.41mm)

Product details

2/0 AWG power terminal with #3/8 stud hole

The 326801 is the 2/0 AWG member of TE's Ampower rectangular terminal line, terminated to #3/8 studs via two stud holes.

Position within the Ampower stud-terminal range

The 326801's 2/0 AWG wire size and 0.110" tab thickness sit between the 2 AWG 326799 and the 300 MCM 326805 — all three share the #3/8 stud size and two-hole terminal style, so the stud hole pattern is consistent across the series. The single-stud-hole sibling 325403 shares the same 2/0 AWG wire gauge and barrel dimensions as the 326801, differing only in the number of stud holes.

Frequently asked questions

Will 326801 drop into a panel specified around 326805 without rewiring?

No — the 326805 uses 300 MCM wire with a larger barrel (0.758" ID vs 0.513" ID) and thicker tab (0.160" vs 0.110"), so the crimp and stud-hole fit differ.
