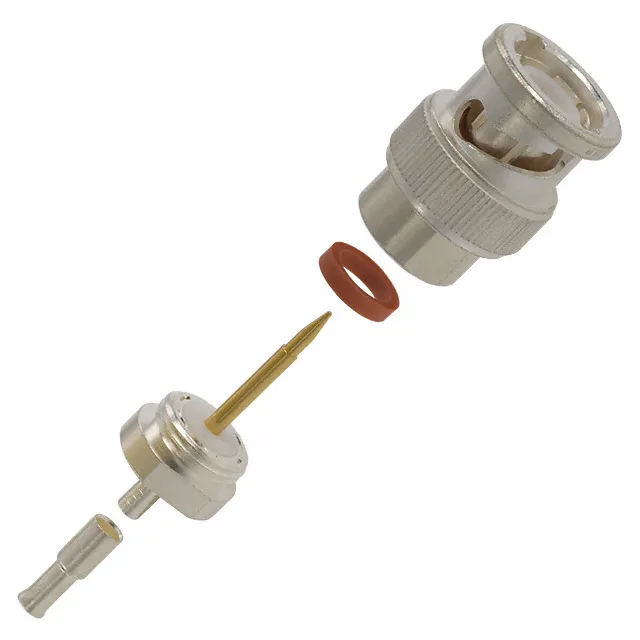

330876 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 330876 Coaxicon BNC Plug, 50 Ohm, 2.5 GHz

MPN330876
Obsolete

TE Connectivity Coaxicon series BNC plug, male pin, 50 Ohm, 2.5 GHz, RG-178/196, crimp termination, gold center contact, bayonet lock, bulk.

$12.0100Ref. price · indicative, final on quote
330876 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

330876 Technical Specifications
ParameterValue
SeriesCoaxicon
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max2.5 GHz
Cable groupRG-178, 196
Operating temperature-55°C ~ 85°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageBulk
Includes4 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket
Impedance50 Ohms
Body finishSilver
Mating cycles500
Insertion loss0.2dB
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

What is the 330876?

It is a field-terminable, in-line connector for RG-178 and RG-196 coaxial cables, using crimp termination for both the shield and center contact. The bayonet lock provides a quick, vibration-resistant mate, and the PTFE dielectric maintains stable impedance up to 2.5 GHz with 0.2 dB insertion loss.

The bayonet lock engages with a quarter-turn. Termination is crimp: the center contact crimps to the signal conductor, and the ferrule crimps over the cable braid for shield termination. The kit is pre-configured for RG-178 and RG-196 cables; using other cable types will change the impedance and may require a different ferrule or center contact.

Frequently asked questions

Where can I buy the 330876 connector?

The 330876 is an obsolete part. It is not stocked on the shelf; it is sourced to order through independent distribution against an RFQ. Availability and current pricing are confirmed at the time of quotation.

Is the 330876 obsolete and what are my options?

Yes, the 330876 is listed as Obsolete. There is no official replacement or cross-reference from TE Connectivity. Your options are to source remaining inventory through the surplus/broker channel (quoted per RFQ) or to qualify a standard BNC plug from another manufacturer that matches the 50 Ohm impedance, RG-178/196 cable group, and crimp termination.

What cable does the 330876 work with?

The 330876 is designed for RG-178 and RG-196 coaxial cables. The kit includes the correct ferrule and center contact for these cable types. Using other cables will require different termination hardware and may affect impedance.
