The 338068-4: The contact length after the kink is 0.122" (3.10mm), enough to clear a standard 1.6mm PCB and still leave a visible solder fillet on the bottom side.
ROHS3 compliant and rated UL94 V-0 for the glass-filled PBT/polyester housing.

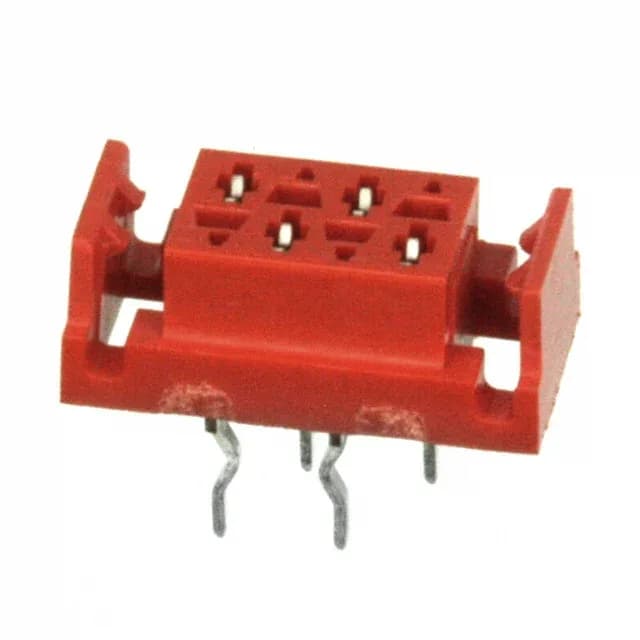

338068-4 TE Connectivity AMP Connectors Female Socket Header
MPN338068-4
Active
TE Connectivity AMP Connectors Micro-MaTch, 338068-4, Receptacle, 4 circuits, 2 rows, 0.100" (2.54mm) pitch, tin-plated forked contacts, friction lock, through-hole kinked-pin termination, -40°C to 105°C, UL94 V-0.
$0.4300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMicro-MaTch
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Micro-MaTch |
| Type | Forked |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Friction Lock |
| Voltage rating | 100VDC |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Red |
| Insulation height | 0.157\" (4.00mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Termination | Kinked Pin, Solder |
| Applications | Automotive, General Purpose |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.122\" (3.10mm) |
| Contact finish - mating | Tin |
Product details
Frequently asked questions
Does 338068-4 have a friction lock?
Yes — the fastening type is friction lock, which provides a positive retention against vibration without requiring a secondary latch or screw.
Is 338068-4 RoHS compliant?
Yes — it is ROHS3 compliant.
