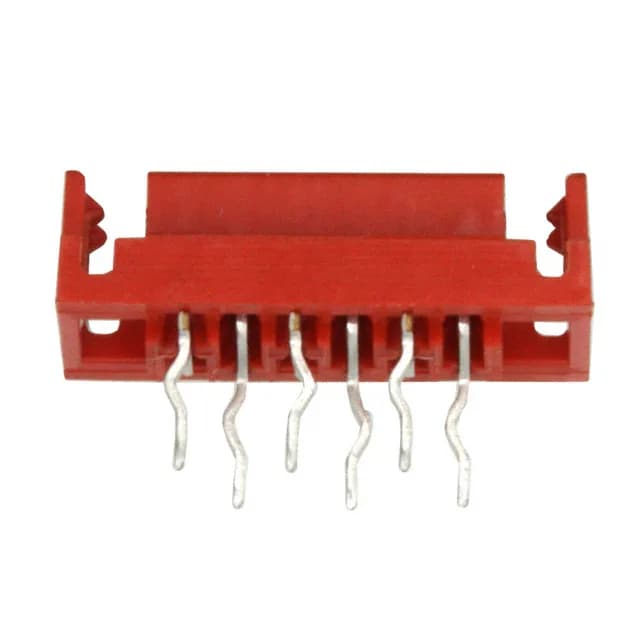

TE Connectivity AMP Connectors Micro-MaTch receptacle, 6 positions, 0.100" (2.54mm) pitch, tin-plated forked contacts, friction lock retention, through-hole kinked pin termination, UL94 V-0 housing, -40°C to 105°C operating range.
| Parameter | Value |
|---|---|
| Series | Micro-MaTch |
| Type | Forked |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Friction Lock |
| Voltage rating | 100VDC |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Red |
| Insulation height | 0.157\" (4.00mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Termination | Kinked Pin, Solder |
| Applications | Automotive, General Purpose |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.122\" (3.10mm) |
| Contact finish - mating | Tin |
The 338068-6: The through-hole kinked pins lock into the plated holes during soldering, keeping the part seated flat against the board without secondary hold-downs.
The forked contact design provides dual wiping surfaces on the header pin, increasing contact redundancy in high-vibration environments.
The mating pitch is 0.100" (2.54mm), and the row spacing is also 0.100" (2.54mm). This matches the standard 0.1-inch grid for PCB layout.
Yes, it is ROHS3 compliant.
No official pin-compatible alternative is listed by the manufacturer. The Micro-MaTch series includes other position counts, but a direct replacement would require the same 6-position, 0.100" pitch, friction lock receptacle.
