Board-fit and environment
The 338070-4 is a 4-position, dual-row receptacle from TE's Micro-MaTch series, pitched at 0.100" (2.54mm) — the standard breadboard spacing that mates with common 0.025" square pin headers.

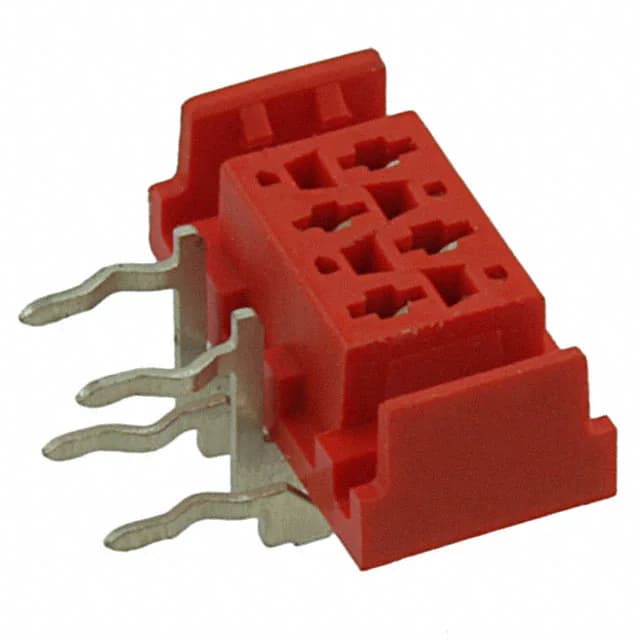

338070-4 TE Connectivity Micro-MaTch 4-Pin Receptacle
MPN338070-4
Active
TE Connectivity AMP Connectors Micro-MaTch series, 338070-4, 4-position dual-row receptacle, 0.100" (2.54mm) pitch, through-hole right-angle, tin-plated forked contacts, friction lock, UL94 V-0, -40°C to 105°C.
$0.9400Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMicro-MaTch
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Micro-MaTch |
| Type | Forked |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Friction Lock |
| Voltage rating | 100VDC |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Red |
| Insulation height | 0.228\" (5.80mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Termination | Kinked Pin, Solder |
| Applications | Automotive, General Purpose |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.122\" (3.10mm) |
| Contact finish - mating | Tin |
Product details
Frequently asked questions
Is 338070-4 compatible with standard 2.54mm pin headers?
Yes. The friction lock engages with the mating header's locking ramp — confirm the header has the matching lock feature.
