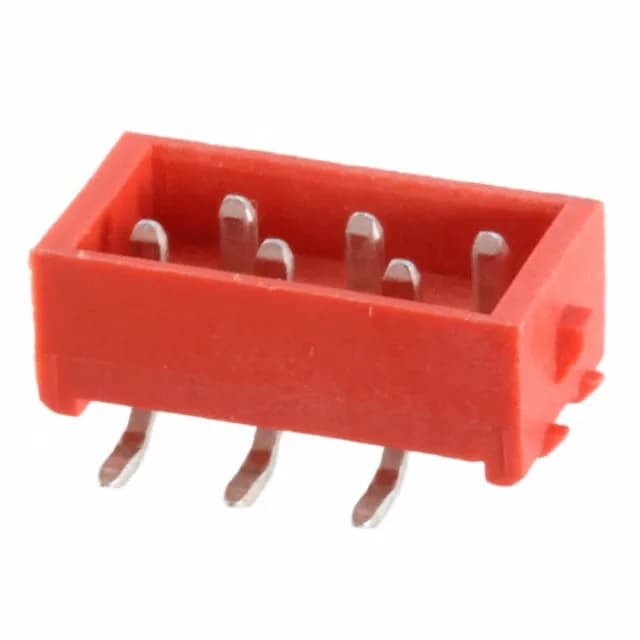

TE Connectivity AMP Connectors Micro-MaTch header, 338728-6, 6 positions, 2.54 mm pitch, shrouded 4-wall, SMT, tin-plated male pins, latch lock, UL94 V-0, -40°C to 105°C, 1.5 A, 230 V.
| Parameter | Value |
|---|---|
| Series | Micro-MaTch |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Latch Lock |
| Voltage rating | 230V |
| Current rating | 1.5A |
| Operating temperature | -40°C~105°C |
| Contact material | Brass |
| Insulation color | Red |
| Insulation height | 0.181\" (4.60mm) |
| Insulation material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Rectangular |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - mating | 118.1µin (3.00µm) |
The 338728-6 is a 6-position, dual-row header on 2.54 mm pitch — the same grid as legacy 0.100-inch DIP packages, so the footprint fits alongside through-hole components on a mixed-technology board.
Surface-mount termination means the header reflows with the board's solder paste — no wave-solder step needed. The UL94 V-0 rating confirms the housing will not sustain flame in a fault condition inside an enclosure.
338728-6 is sourced per RFQ through independent distribution. No stock-holding claim is made on this listing.
2.54 mm pitch, 6 positions, dual-row, all positions loaded.
Yes, it is ROHS3 compliant per the manufacturer's declaration.
