TE Connectivity AMP Connectors 338728-8 — Pin Headers

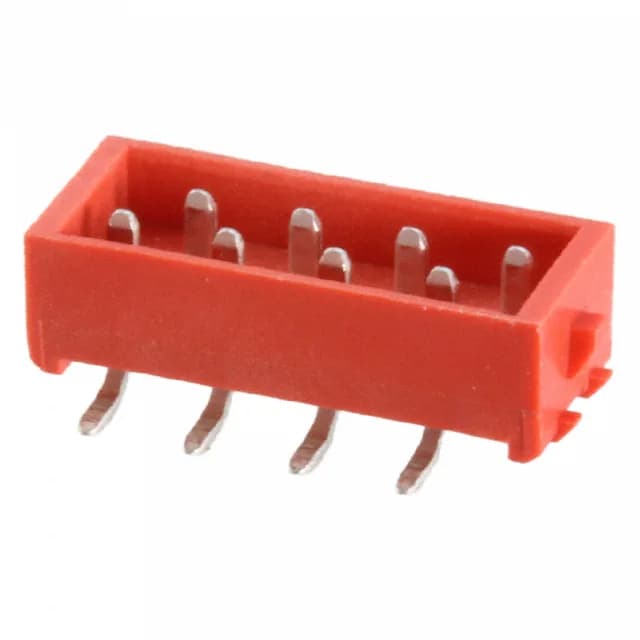

338728-8 TE Connectivity Micro-MaTch Header, 8 Pos, 2.54mm

MPN338728-8
Active

TE Connectivity AMP Connectors, Micro-MaTch series, 8-position shrouded header, 0.100" (2.54mm) pitch, surface mount, latch lock, 1.5A, -40°C ~ 105°C, UL94 V-0, red insulation.

$1.9900Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMicro-MaTch
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

338728-8 key specifications
ParameterValue
SeriesMicro-MaTch
TypeMale Pin
MountingSurface Mount
Connector typeHeader
Fastening typeLatch Lock
Voltage rating230V
Current rating1.5A
Operating temperature-40°C ~ 105°C
Contact materialBrass
Insulation colorRed
Insulation height0.181\" (4.60mm)
Insulation materialPolyamide (PA46), Nylon 4/6, Glass Filled

All specifications

338728-8 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageTape & Reel (TR) Cut Tape (CT)
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose
Contact shapeRectangular
Rows2
Pitch0.100\" (2.54mm)
Positions8
Contact finish - postTin
Contact finish - matingTin
Contact finish thickness - mating118.1µin (3.00µm)

Product details

8-position SMT header with latch lock

What the 1.5A and latch lock mean for your build

The 1.5A current rating per contact is typical for signal-level interconnects — don't plan to push power through this header.

This header mates with Micro-MaTch female receptacles (cable or board-mount) that share the same 2.54mm pitch and latch lock interface. Termination is solder-only — surface mount for the header side, crimp or solder for the receptacle side depending on the mating part. The 8 positions are all loaded; no unpopulated slots.

Frequently asked questions

What is the mating connector for 338728-8?

The 338728-8 mates with Micro-MaTch female receptacles — either cable-mount or board-mount versions, both with the same 2.54mm pitch and latch lock. The exact mating part number depends on your wire gauge or board configuration; check the series drawing for the specific receptacle order code.

Can 338728-8 be used for wire-to-board connections?

Yes, the style is listed as Board to Board or Cable. When paired with a Micro-MaTch cable-mount receptacle and crimp terminals, it functions as a wire-to-board interconnect. The latch lock holds the cable assembly securely.
