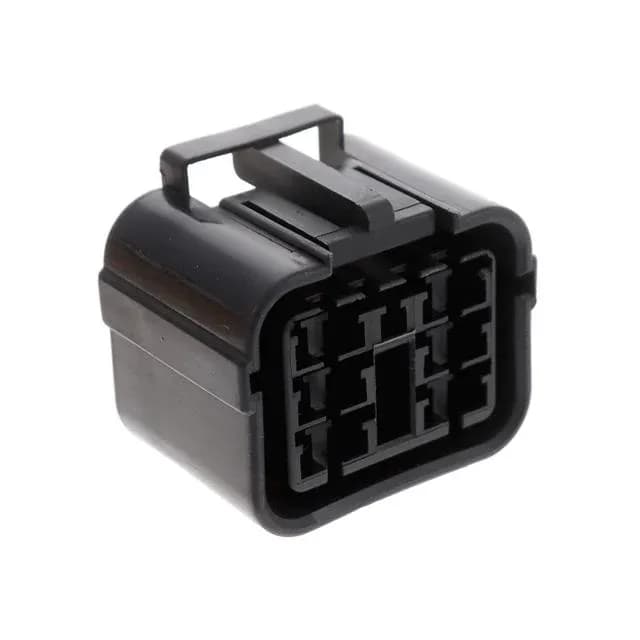

Receptacle Housing for EconoSeal III 070
It uses a 4.80mm pitch with 3 rows at a 5.60mm row spacing, making it a compact multi-circuit interconnect for sealed harness applications.
Pitch and Row Configuration
At 4.80mm pitch and 5.60mm row spacing, this housing provides adequate creepage for the 12V/24V automotive electrical systems it was designed for. The 13 positions across 3 rows means the connector body is wider than a 2-row equivalent — check mating cavity clearance in your junction box or ECU cover before specifying.
Terminals and Wiring
This is a housing-only item; you must order the male pin crimp terminals separately. The EconoSeal III 070 system uses standard 070-series terminals (0.64mm tab width) that accept 20-22 AWG wire. The crimp termination is suited for automated harness production — the housing has integral primary and secondary locking to retain terminals once seated.
The product status is Active. For current pricing and lead time, submit an RFQ — availability is confirmed at quote time.
