TE Connectivity AMP Connectors 350784-1 — Connector Housings

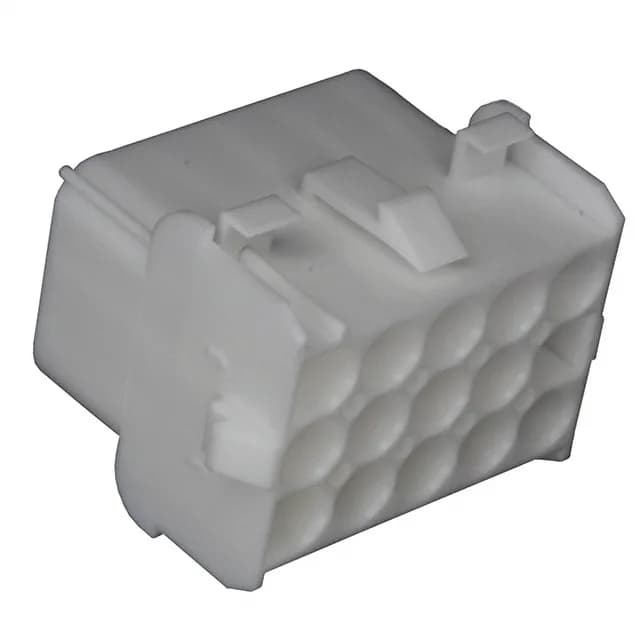

TE 350784-1 Universal MATE-N-LOK Receptacle Housing, 15 Pos

MPN350784-1
Active

TE Connectivity Universal MATE-N-LOK receptacle housing, 350784-1, 15 positions, 3 rows, 0.250" (6.35mm) row spacing, panel mount snap-in, locking ramp, natural nylon, crimp termination, contacts not included.

$1.4800Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 350784-1 datasheet (PDF)
RoHSRoHS Compliant
SeriesUniversal MATE-N-LOK
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

350784-1 specifications
ParameterValue
SeriesUniversal MATE-N-LOK
TypeMale or Female
MountingPanel Mount, Snap-In
Connector typeReceptacle
Fastening typeLocking Ramp
Operating temperature-55°C ~ 105°C
ColorNatural
Insulation materialPolyamide (PA), Nylon
NoteContacts Not Included
PackageBulk
Row spacing0.250\" (6.35mm)
Rows3
Contact terminationCrimp
Positions15

Product details

15-Position Universal MATE-N-LOK Receptacle Housing

The TE Connectivity 350784-1 is a 15-position receptacle housing from the Universal MATE-N-LOK series, arranged in a 3-row configuration with a 0.250" (6.35mm) row spacing.

Contacts and Crimp Termination — What to Order Separately

The secondary locking ramp in the housing body retains the contact once seated — you'll hear the ramp click over the contact lance.

Panel Mount and Locking Ramp — Fit for Vibration Duty

The snap-in panel mount lets you push the housing into a rectangular panel cutout — no hardware, no tools. The 0.250" (6.35mm) row spacing is wide enough to give good dielectric separation between rows, which supports the voltage rating of the Universal MATE-N-LOK system (typically 600V, though the exact rating depends on the contact and wire combination). For a 15-position, 3-row layout, the panel cutout is roughly 1.2" x 0.6" — the exact dimensions are in the product drawing.

Lifecycle and Sourcing — Active and Available

The 350784-1 is listed as Active and RoHS Compliant. For BOM planning, this means no forced redesign or alternate qualification in the near term.

Frequently asked questions

What contacts fit 350784-1?

The housing accepts Universal MATE-N-LOK crimp terminals in either male or female pin/socket format. Contacts are ordered separately — the housing itself is just the shell. Use TE's contact part numbers from the Universal MATE-N-LOK series that match your wire gauge.

What is the row spacing of 350784-1?

The row spacing is 0.250" (6.35mm) across the 3 rows. This is the center-to-center distance between adjacent rows of contact cavities.

Can 350784-1 be used with male pins?

Yes — the housing accepts either male or female contacts. The contact type is listed as "Male or Female", so the same housing works with either gender terminal.
