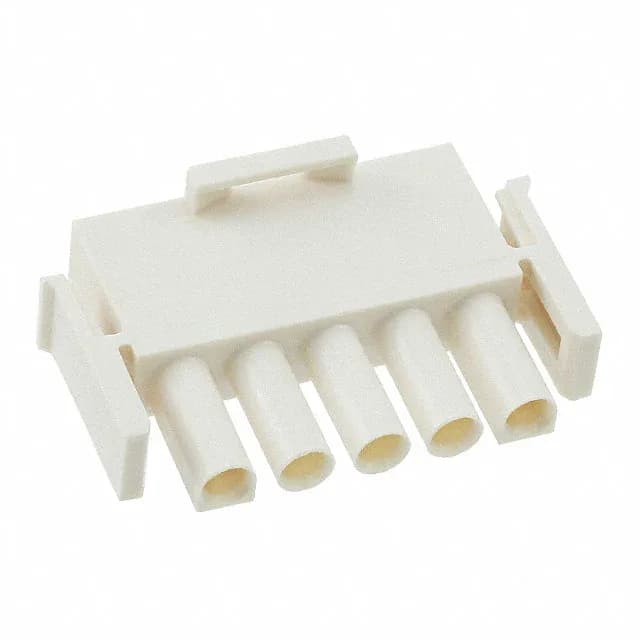

5-Position Plug Housing for Power-Level Wire-to-Wire Interconnects
The 350809-3 accepts male pin contacts terminated via crimp, which must be ordered separately as a line item. The 6.35mm pitch and single-row layout accept the standard Universal MATE-N-LOK pin terminals; confirm the wire gauge range (typically 14-20 AWG for this series) against your harness build before committing the BOM.
The 350809-3 mates with the corresponding Universal MATE-N-LOK receptacle housing (female socket contacts) of the same 5-position, 6.35mm pitch layout. No secondary locking device is required, though the series supports a TPA (terminal position assurance) insert for applications that demand it.
Glow Wire Compliance and Material Rating
The polyamide 6/6 housing is rated glow wire compliant, which means it passes the 850°C glow-wire test per IEC 60695-2-11 — a requirement for unattended appliances and equipment that must not propagate flame. RoHS compliance is on record.
