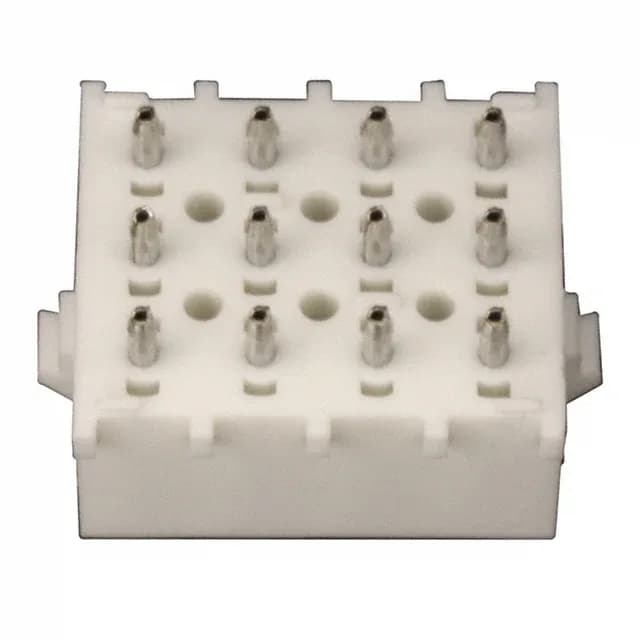

Board-to-wire header for harness builders
It carries 12 positions in 3 rows at a 0.250" (6.35mm) pitch — the same spacing as the mating receptacle, so your board footprint matches the cable assembly one-for-one. Gold plating on the mating contact, 30.0µin thick, sits over a phosphor bronze base. Housing is white nylon, rated UL94 V-0.
RoHS Compliant — covers commercial and industrial regulatory requirements.
Mating half and pinout
The 3-row, 12-position layout is keyed — the locking ramp aligns only one way, so mis-mating is mechanically blocked. All 12 positions are loaded.
