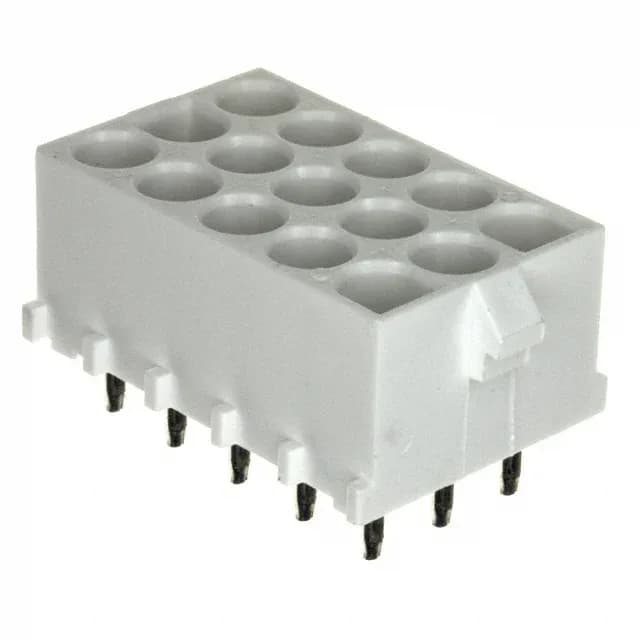

TE Connectivity AMP Connectors 350837-1 — Female Socket Headers

350837-1 TE Universal MATE-N-LOK 15 Pos Header 6.35mm Tin

MPN350837-1
Active

TE Connectivity AMP Connectors Universal MATE-N-LOK header, 15 positions, 3 rows, 6.35mm pitch, tin mating finish, locking ramp, through-hole solder termination, UL94 V-0 nylon housing.

$3.3100Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 350837-1 datasheet (PDF)
RoHSRoHS Compliant
SeriesUniversal MATE-N-LOK
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

350837-1 key specifications
ParameterValue
SeriesUniversal MATE-N-LOK
TypeFemale Socket
MountingThrough Hole
Connector typeHeader
Fastening typeLocking Ramp
Contact materialPhosphor Bronze
Insulation colorNatural
Insulation height0.550\" (13.97mm)
Insulation materialPolyamide (PA), Nylon
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray

All specifications

350837-1 additional specifications
ParameterValue
TerminationSolder
Contact shapeCircular
Rows3
Pitch0.250\" (6.35mm)
Positions15
Row spacing - mating0.250\" (6.35mm)
Contact finish - postTin
Contact length - post0.215\" (5.46mm)
Contact finish - matingTin

Product details

Board-to-wire header for power and signal harnesses

The 6.35mm pitch and 6.35mm row spacing provide ample room for routing larger-gauge wires and maintaining creepage distances in power distribution or signal harnesses. The through-hole solder termination and UL94 V-0 nylon housing suit the header for wave-solder assembly on standard FR4 boards, with the 0.215-inch post length clearing typical board thicknesses up to 1/16 inch.

This header accepts the matching Universal MATE-N-LOK female socket housings and crimp terminals (sold separately). The 3-row, 15-position layout requires a complementary 15-position receptacle with 6.35mm pitch and 6.35mm row spacing. No press-fit or surface-mount variant is offered for this order code.

Frequently asked questions

Where can I buy 350837-1 and how do I get a price?

The 350837-1 is sourced through independent distribution. No stock-holding claim is made on this listing.

Is 350837-1 male or female?

The 350837-1 is a header with female socket contacts – it receives the male pins from the mating plug housing. It is classified as a Female Socket Header in the TE Universal MATE-N-LOK series.

What is the mating connector for 350837-1?

The mating half is a Universal MATE-N-LOK receptacle housing with male pin contacts, 15 positions, 3 rows, 6.35mm pitch. TE offers several housing and terminal options in the same series – confirm the circuit count and row spacing match before ordering.

What is the pitch of 350837-1?

The mating pitch is 0.250 inches (6.35mm), and the row spacing is also 0.250 inches (6.35mm). This standard pitch supports moderate current per contact and simplifies PCB layout.
