Housing for a MAP Sensor Harness

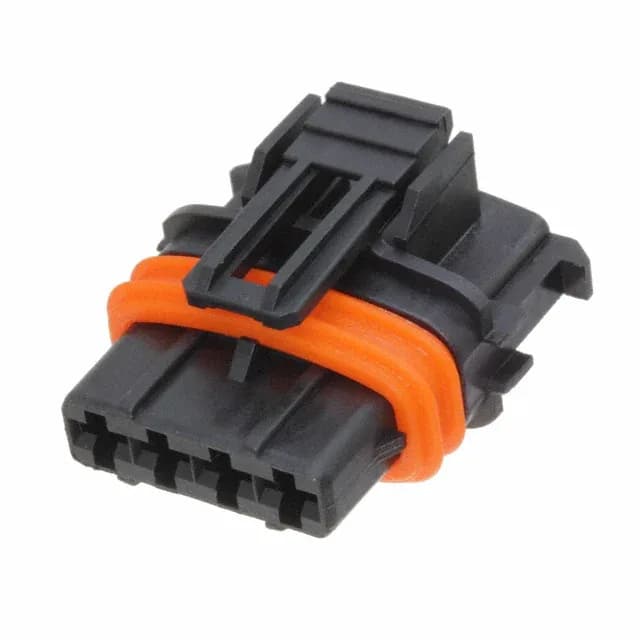

The 368162-1: It accepts female socket contacts terminated via crimp, with the housing itself ordered separately from the contacts — the listing explicitly notes contacts are not included. The single-row, free-hanging (in-line) design uses a latch lock for secure mating and carries a sealed feature, indicating protection against moisture and debris in the engine bay environment.
What to Order Alongside the Housing
Because the 368162-1 ships as a bare housing, the build requires the matching crimp terminals — female socket contacts — to be sourced separately. The housing accepts these contacts and the crimp termination is standard for the Junior Power Timer series. The latch lock holds the mated pair together; the sealed housing suits underhood or exposed harness locations where splash or dust ingress is a concern. The black PA66 (glass-filled nylon 6/6) insulation material provides the mechanical and thermal baseline for the assembly.
Lifecycle and Compliance
The 368162-1 carries an Active product status and is ROHS3 compliant. No end-of-life notice or successor part is recorded.
