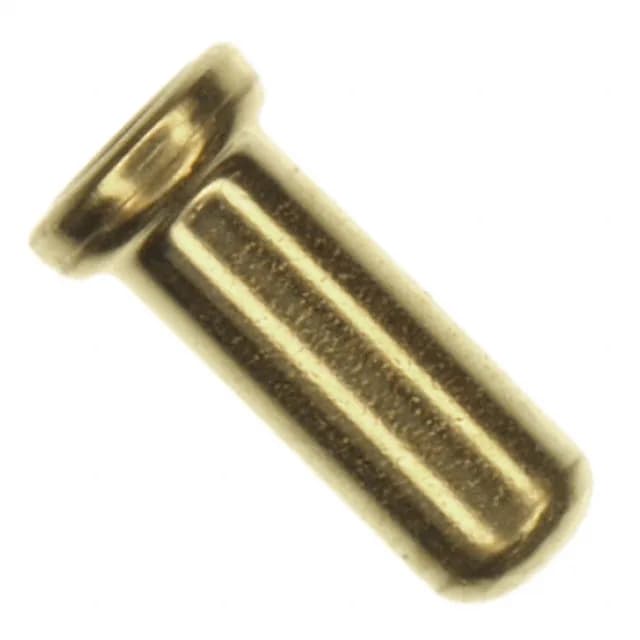

TE Connectivity AMP Connectors pin header socket, order code 380598-1, gold-plated beryllium copper contact, 0.145" (3.68mm) socket depth, accepts 0.018"~0.040" (0.46mm~1.02mm) pin diameter, solder termination, no tail, bulk package.
| Parameter | Value |
|---|---|
| Tail type | No Tail |
| Mounting hole diameter | 0.086\" ~ 0.089\" (2.18mm ~ 2.26mm) |
| Operating temperature | -55°C~125°C |
| Socket depth | 0.145\" (3.68mm) |
| Contact material | Beryllium Copper |
| Package | Bulk |
| Termination | Solder |
| Contact finish | Gold |
| Board thickness | 0.156\" (3.96mm) |
| Flange diameter | 0.125\" (3.18mm) |
| Insertion force | 0.12N ~ 0.34N |
| Length - overall | 0.262\" (6.65mm) |
| Pin hole diameter | 0.048\" (1.22mm) |
| Accepts pin diameter | 0.018\" ~ 0.040\" (0.46mm ~ 1.02mm) |
| Contact finish thickness | 30.0µin (0.76µm) |
The 380598-1 is a single-contact pin header socket from TE Connectivity AMP Connectors, designed to accept pin diameters from 0.018" to 0.040" (0.46mm to 1.02mm).
The socket accepts pin diameters from 0.018" to 0.040" (0.46mm to 1.02mm) and requires a mounting hole diameter of 0.086" to 0.089" (2.18mm to 2.26mm). The pin hole diameter is 0.048" (1.22mm), and the overall length is 0.262" (6.65mm).
The socket accepts pin diameters from 0.018" to 0.040" (0.46mm to 1.02mm).
The 380598-1 has no tail; termination is by solder.
