TE Connectivity AMP Connectors 3PCV-16-006
MPN3PCV-16-006
Active

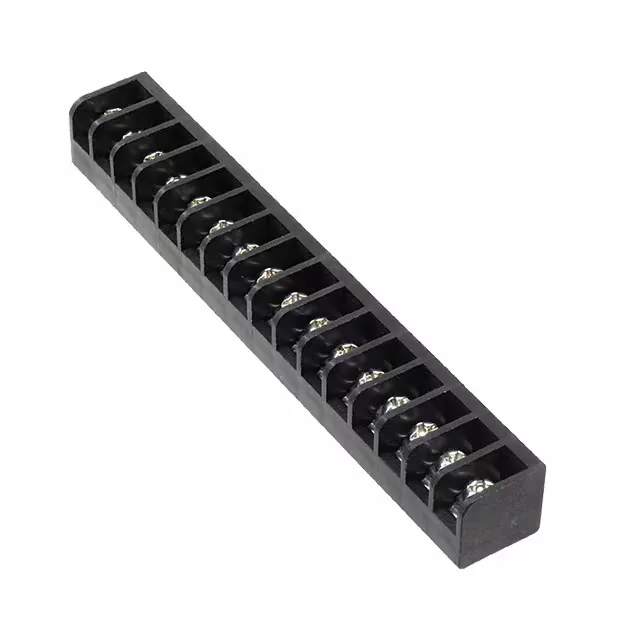

CONN BARRIER STRIP 16CIRC 0.25"
$8.58Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series#3, Buchanan
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | #3, Buchanan |
| Barrier type | 3 Wall (Tri) |
| Mounting | Through Hole |
| Terminal block type | Barrier Block |
| Voltage rating | 300V |
| Current rating | 10A |
| Wire gauge | 18-22 AWG |
| Terminal screw finish | Zinc |
| Number of wire entries | 16 |
| Terminal screw material | Steel |
| Operating temperature | 120°C |
| Color | Black |
All specifications
| Parameter | Value |
|---|---|
| Material - insulation | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.250\" (6.35mm) |
| Package | Bulk |
| Rows | 1 |
| Top termination | Screws with Captive Plate |
| Bottom termination | PC Pin |
| Number of circuits | 16 |
