Obsolete — sourcing from available stock
TE Connectivity has designated the 4-102974-0-04 as Obsolete. The base product number 102974 may help locate alternative position counts in the same series.

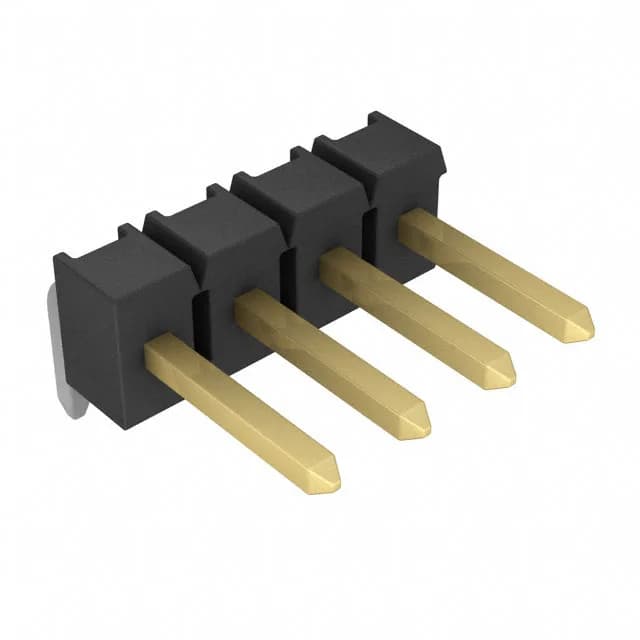

TE AMPMODU Mod II 4-102974-0-04 Header, 4-Pos 2.54mm
MPN4-102974-0-04
Obsolete
TE Connectivity AMP Connectors AMPMODU Mod II header, order code 4-102974-0-04, 4 positions, single row, 0.100" (2.54mm) pitch, 3 A, gold-plated mating contacts, through-hole right-angle, solder termination.
$0.8500Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.138\" (3.50mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.110\" (2.79mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Product details
Frequently asked questions
What is the closest pin-compatible alternative to 4-102974-0-04?
No official pin-compatible successor exists. The AMPMODU Mod II series includes other single-row breakaway headers at 0.100" pitch, but position counts and contact plating vary — confirm the BOM position count and mating half before sourcing.
