TE Connectivity AMP Connectors 4-102975-0 — Pin Headers, Sockets & Housings

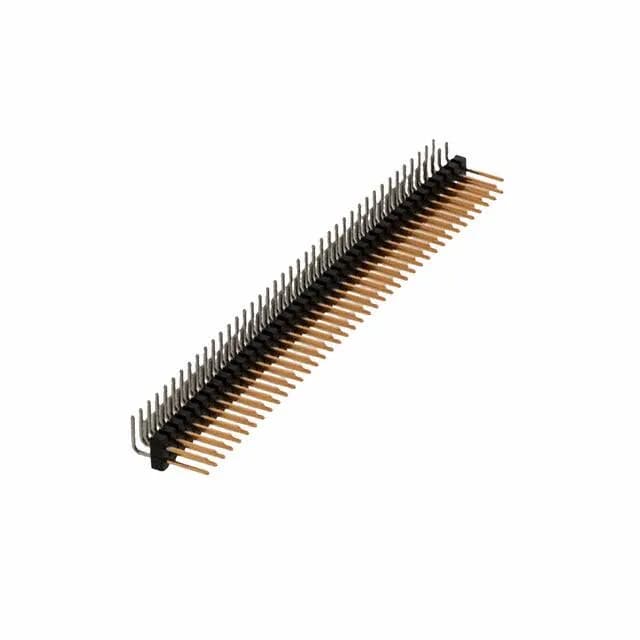

TE 4-102975-0 AMPMODU Mod II Header, 80 Pos, 0.100" Pitch

MPN4-102975-0
Obsolete

TE Connectivity AMPMODU Mod II header, order code 4-102975-0, 80 positions, dual row, 0.100" (2.54mm) pitch, 3 A, gold-plated mating contacts, through-hole right-angle, solder termination.

$6.8400Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 4-102975-0 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

4-102975-0 key specifications
ParameterValue
SeriesAMPMODU Mod II
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader, Breakaway
Fastening typePush-Pull
Current rating3A
Operating temperature-65°C~105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.238\" (6.05mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0

All specifications

4-102975-0 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageBulk
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions80
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin-Lead
Contact length - post0.110\" (2.79mm)
Contact finish - matingGold
Contact length - mating0.318\" (8.08mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

80-position breakaway header for board-to-board or cable duty

The 4-102975-0 is the 80-position member of TE's AMPMODU Mod II header line, a dual-row breakaway style for board-to-board or cable connections.

Production status and sourcing approach

Availability is confirmed per RFQ; quantities are quoted against the BOM line.

What the key specs mean for the board fit

The unshrouded push-pull design allows the header to be broken to a shorter length on site, though the 80-position loaded-all version ships as a single piece.

Frequently asked questions

What compliance documentation is available for the 4-102975-0?

Full RoHS/REACH status should be verified against the manufacturer's compliance documentation at the time of order.
