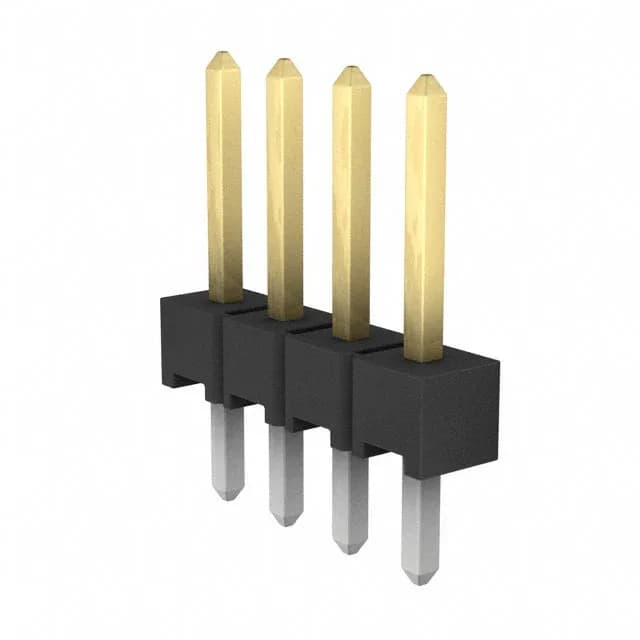

TE Connectivity AMP Connectors AMPMODU Mod II header, breakaway, order code 4-102976-0-04, 4 positions, single row, 0.100" (2.54mm) pitch, 3 A, gold-plated mating contacts, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.090\" (2.29mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.125\" (3.18mm) |
| Overall contact length | 0.533\" (13.55mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 4-102976-0-04 is the 4-position member of TE's AMPMODU Mod II breakaway header line, unshrouded, single row, with push-pull fastening. Mating contacts are gold-plated (30.0µin) on a square copper alloy pin; the post finish is tin-lead (100.0µin).
The part is sourced through independent surplus channels; quantities are lot-specific.
Available through independent surplus channels.
The functional replacement uses a different package and pinout — a board spin is required.
The listed style is Board to Board or Cable.
