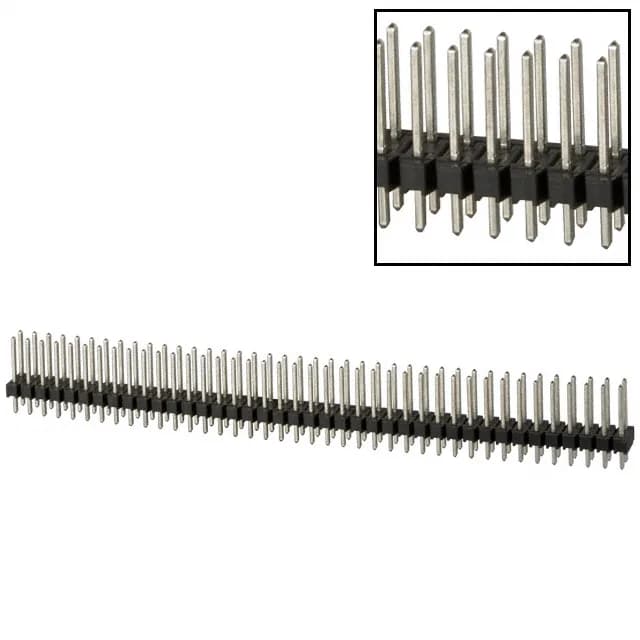

TE Connectivity AMP Connectors AMPMODU Mod II, 80-position, 2.54mm pitch, unshrouded breakaway header, tin-plated contacts, 3A rating, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.090\" (2.29mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 80 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Overall contact length | 0.533\" (13.55mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
Rated at 3A per contact with tin-plated mating surfaces, it suits signal-level applications where the current per circuit stays under that ceiling.
This part is marked as Obsolete by the manufacturer. Availability is confirmed at time of RFQ through independent distribution channels.
This part is obsolete but can be sourced through independent distribution. No stock-holding claim is made.
No official direct replacement is recorded. The closest pin-compatible alternative is another 80-position, 2.54mm-pitch, unshrouded header from the AMPMODU Mod II series — confirm contact finish (tin vs gold) and post length before committing.
