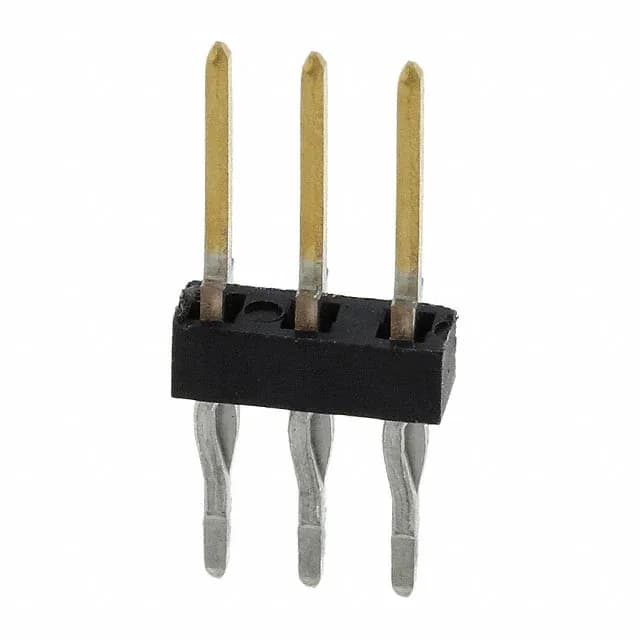

TE Connectivity AMP Connectors AMPMODU Mod II, Header, Male Pin, 3 Positions, 0.100" (2.54mm) Pitch, Unshrouded, Through Hole, Press-Fit / Solder Termination, 3A, Gold Mating Finish.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.090\" (2.29mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tray |
| Shrouding | Unshrouded |
| Termination | Press-Fit, Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 3 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.250\" (6.35mm) |
| Overall contact length | 0.660\" (16.76mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.320\" (8.13mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The press-fit and solder termination means you can either press the pins into plated through-holes for a solderless assembly or solder them for a permanent joint. The 0.250" (6.35mm) post length gives enough tail for standard PCB thickness.
The closest functional alternative is 103233-3, also from AMPMODU Mod II.
No, it is RoHS non-compliant due to the tin-lead finish on the post. Verify your assembly's RoHS exemption policy before ordering.
Yes, the peer 103233-3 is an 8-position, dual-row alternative with the same pitch and current rating. For a 3-position single-row replacement, 4-103336-0 is the direct match.
