Last buy — plan the BOM transition
TE Connectivity has placed the 4-103741-0 on Last Buy status. Orders are accepted while inventory lasts; no official successor is listed from the original manufacturer.

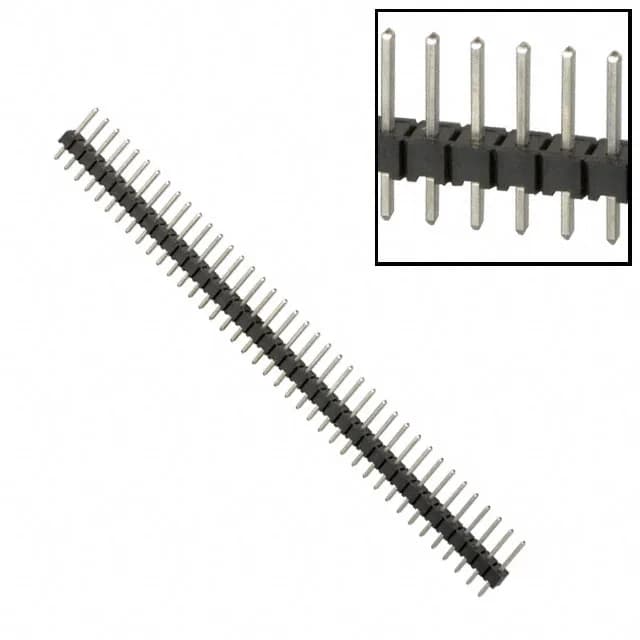

TE 4-103741-0 AMPMODU Mod II Header, 40 Pos, 0.100" Pitch
MPN4-103741-0
Last Buy
TE Connectivity AMP Connectors AMPMODU Mod II header, breakaway, order code 4-103741-0, 40 positions, single row, 0.100" (2.54 mm) pitch, through hole, solder termination, tin-lead mating and post contact finish, 3 A, UL94 V-0.
$2.6100Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C~105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.090\" (2.29mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 40 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.090\" (2.29mm) |
| Overall contact length | 0.410\" (10.41mm) |
| Contact finish - mating | Tin-Lead |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
Product details
Frequently asked questions
What compliance documentation is available for 4-103741-0?
RoHS and REACH compliance status should be verified against the manufacturer's current documentation at time of order.
