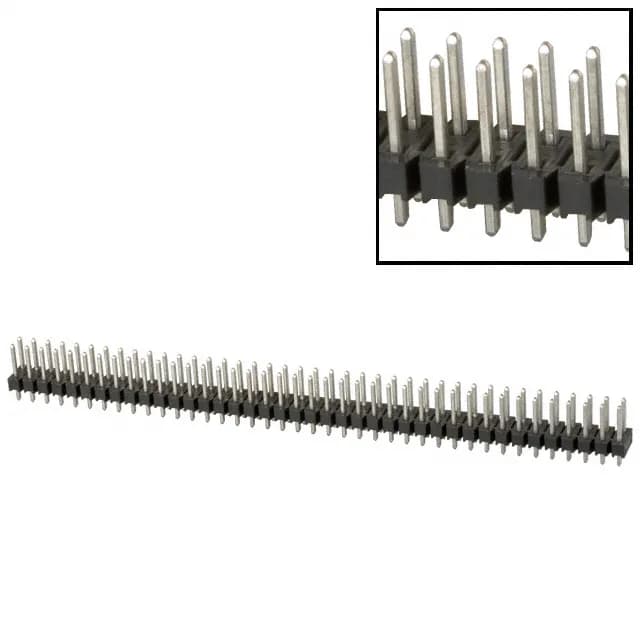

TE Connectivity AMP Connectors AMPMODU Mod II, Header, Breakaway, 80 Positions, 0.100" (2.54mm) Pitch, Through Hole, Unshrouded, Tin-Lead Contact Finish, 3A Current Rating.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.090\" (2.29mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 80 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.090\" (2.29mm) |
| Overall contact length | 0.410\" (10.41mm) |
| Contact finish - mating | Tin-Lead |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
80 circuits in a dual-row, 0.100" (2.54mm) pitch layout. Rated 3A per contact at the stated temperature range.
Unshrouded male pin header with push-pull fastening. Through-hole solder termination, 0.090" (2.29mm) post length. Black thermoplastic housing rated UL94 V-0.
We source this obsolete part through independent distribution. Submit an RFQ for current availability and pricing.
No official replacement is recorded from TE Connectivity. A pin-compatible alternative would need to match the 80-position, 2.54mm pitch, dual-row, unshrouded footprint. Cross-reference to other AMPMODU Mod II headers or generic 0.100" breakaway headers is possible, but no direct drop-in is confirmed.
