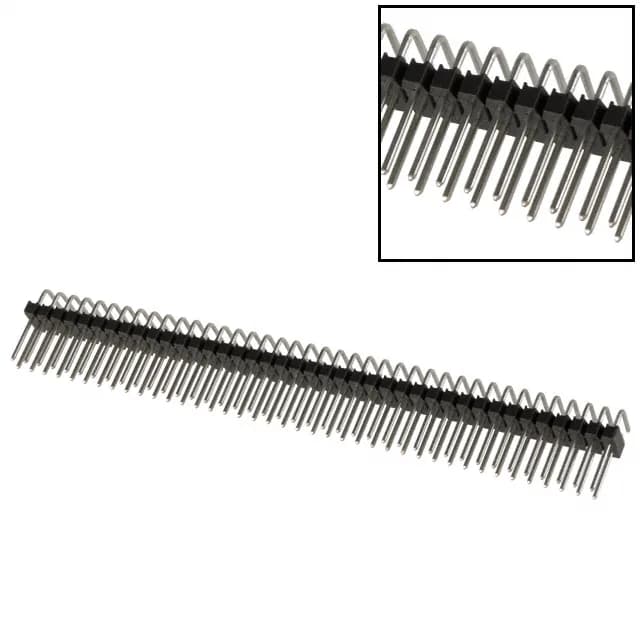

80-position breakaway header, 0.100" pitch
The 4-103795-0 is the 80-position member of TE's AMPMODU Mod II breakaway header line, configured for board-to-board or cable duty with an unshrouded push-pull interface. Rated 3 A per contact with tin-lead plating on both the mating surface and the solder post, the header suits signal-level interconnects where the 0.100" pitch matches standard prototyping grids.
Through-hole right-angle mounting
The through-hole right-angle orientation places the 0.090" (2.29 mm) solder post perpendicular to the board edge, allowing the header to sit parallel to the PCB plane — a fit for card-edge or mezzanine layouts where vertical clearance is limited. All 80 positions are loaded across two rows spaced at 0.100" (2.54 mm); the 0.230" (5.84 mm) mating pin length provides sufficient wipe for standard AMPMODU receptacle housings.
