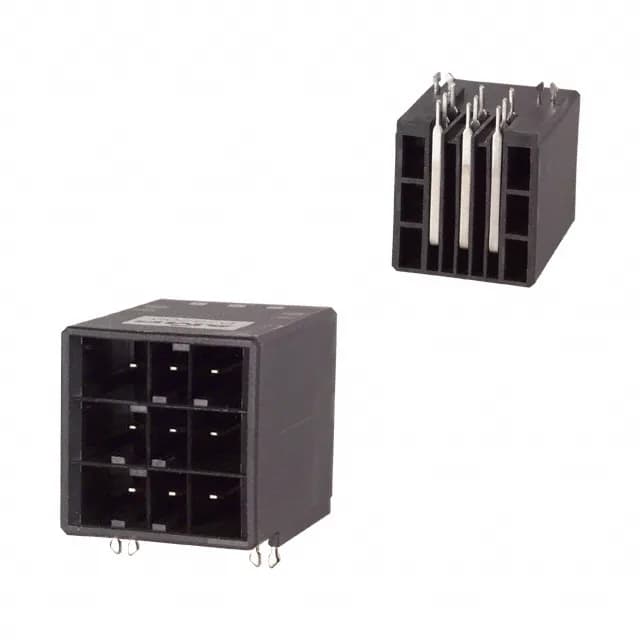

TE Connectivity Dynamic D-3200 series header, 4-1123624-5, 9 positions, 5.08mm pitch, 3 rows, right-angle through-hole, shrouded - 4 wall, board lock, tin-plated tab contacts, 600V rating, UL94 V-0, active production.
| Parameter | Value |
|---|---|
| Series | Dynamic D-3200 |
| Type | Tab |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 600V |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.968\" (24.59mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 3 |
| Pitch | 0.200\" (5.08mm) |
| Positions | 9 |
| Row spacing - mating | 0.300\" (7.62mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - mating | 78.7µin (2.00µm) |
The 4-1123624-5: This Dynamic D-3200 header carries 9 positions across 3 rows at a 5.08mm mating pitch — the row spacing is 7.62mm.
The housing is black thermoplastic polyester with glass fill, rated UL94 V-0 — that flame rating is required for connectors inside equipment enclosures where the housing must self-extinguish within 10 seconds per UL 94.
Brokers and buyers need to know if the part is active, obsolete, or EOL to avoid supply chain risk.
Regulatory compliance is critical for sourcing and manufacturing, especially for industrial applications.
Sourcing buyers need immediate availability to fill BOM lines and avoid production delays.
Design engineers must validate fit and clearance in their PCB layout before specifying the part.
Maintenance and design engineers need to ensure the part can withstand the thermal environment of the application.
Board locks provide mechanical retention, which is important for industrial applications where vibration is present.
