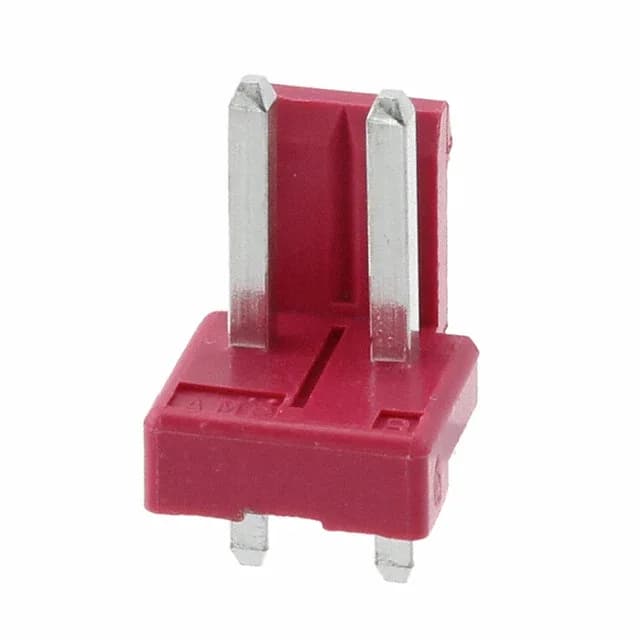

TE Connectivity AMP Connectors Economy Power series, Board to Cable/Wire header, 2 positions, 3.96mm pitch, 7.5A, 250VAC, friction lock, through-hole solder, UL94 V-0, red insulation.
| Parameter | Value |
|---|---|
| Series | Economy Power |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 250VAC |
| Current rating | 7.5A |
| Operating temperature | -25°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Red |
| Insulation height | 0.118\" (3.00mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial, Lighting |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 2 |
| Contact finish - post | Tin |
| Contact length - post | 0.146\" (3.70mm) |
| Overall contact length | 0.567\" (14.40mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.303\" (7.70mm) |
The 7.5A current rating at 250VAC is typical for this pitch class; the tin-plated contacts keep the cost down for moderate-duty power and signal runs in industrial controls, lighting ballasts, and general-purpose equipment.
Yes, it is ROHS3 compliant.
This header mates with a TE Economy Power crimp-style receptacle housing that accepts 18-22 AWG terminals. The friction lock on the header engages the corresponding latch on the receptacle. Confirm the mating half part number against the receptacle series documentation.
