TE Connectivity AMP Connectors 4-1123723-3 — Pin Headers

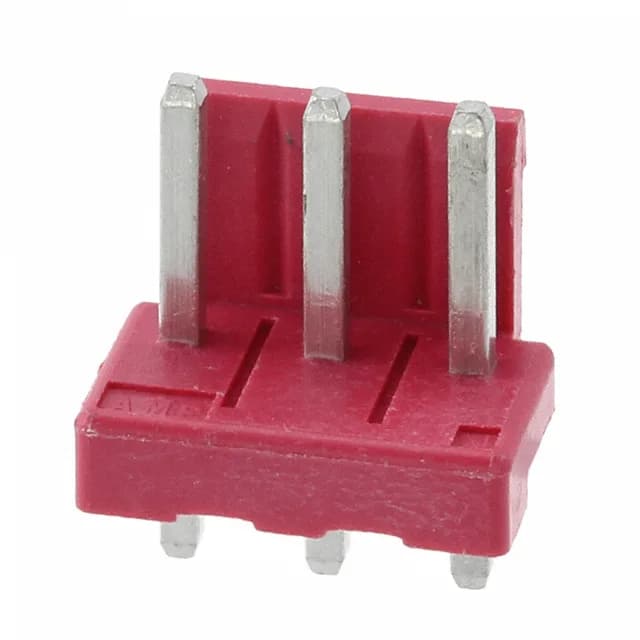

4-1123723-3 TE Economy Power 3-Position 3.96mm Header

MPN4-1123723-3
Active

TE Connectivity AMP Connectors 4-1123723-3, Economy Power series, 3-position single-row vertical header, 0.156" (3.96mm) pitch, through-hole solder termination, tin-plated brass contacts rated 7.5A at 250VAC, shrouded-1-wall with friction lock, red PBT-GF housing, UL94 V-0, -25°C to 105°C.

$0.3800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesEconomy Power
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

4-1123723-3 key specifications
ParameterValue
SeriesEconomy Power
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeFriction Lock
Voltage rating250VAC
Current rating7.5A
Operating temperature-25°C ~ 105°C
Contact materialBrass
Insulation colorRed
Insulation height0.118\" (3.00mm)
Insulation materialPolybutylene Terephthalate (PBT), Glass Filled

All specifications

4-1123723-3 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
ShroudingShrouded - 1 Wall
TerminationSolder
ApplicationsGeneral Purpose, Industrial, Lighting
Contact shapeSquare
Rows1
Pitch0.156\" (3.96mm)
Positions3
Contact finish - postTin
Contact length - post0.146\" (3.70mm)
Overall contact length0.567\" (14.40mm)
Contact finish - matingTin
Contact length - mating0.303\" (7.70mm)

Product details

The 4-1123723-3 is a 3-position, single-row vertical header from TE's Economy Power series. The friction lock provides a positive hold against casual vibration and cable tug, though it is not a locking ramp — expect a firm pull to disengage, not a secondary latch. The single-wall shroud guides the mating receptacle but leaves the contact tips partially exposed for visual alignment.

For a 3-position single-row board-to-wire connection at 3.96mm pitch, the 4-1123723-3 is the correct Economy Power member.

Frequently asked questions

What is the mating connector for 4-1123723-3?

This header mates with the matching Economy Power receptacle housing and crimp terminals. The friction lock engages with the corresponding latch on the receptacle side. Confirm the exact receptacle part number against your wire gauge and circuit count.

Where can I buy 4-1123723-3 and get a price?

The 4-1123723-3 is sourced through independent distribution.
